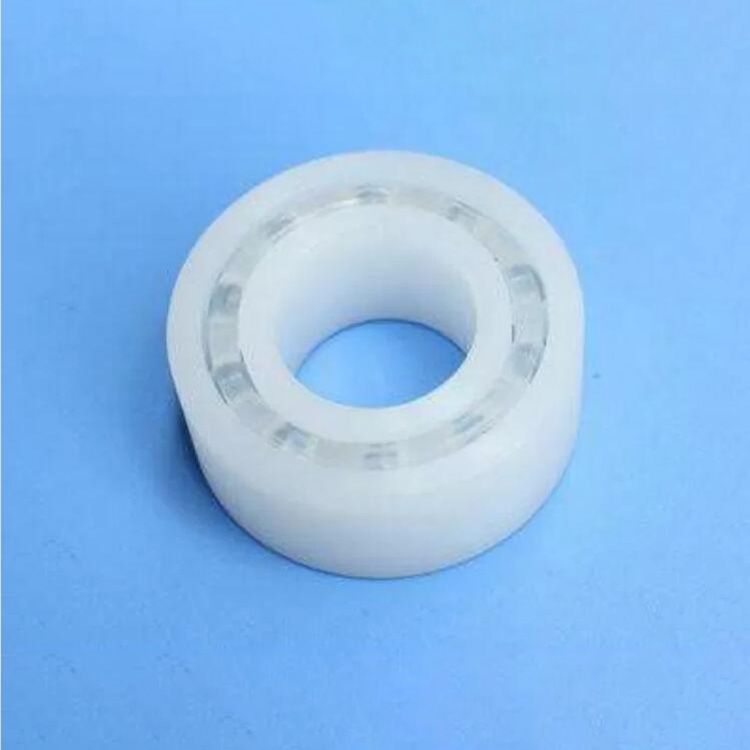

Anti Acid Anti Alkali HDPE PP UPE Plastic Plain Bearings

Product Description

Find a huge selection of Anti Acid Anti Alkali HDPE PP UPE Plastic Plain Bearings from China at Top Bearings.

HDPE,PP,UPE(UHMWPE) are approved can be used in faintish acid and alkali environment (30% CuCl2 solution and 30% NAOH solution is tested ok). Such bearings can be operated in liquid and contamination sensitive environments as acid/alkali/salt/solvent/oil/gas/seawater, and have general performance of lubrication and maintenance free, none magnetism, anti-rust and eroded of plastic bearings. But these bearings have not strong mechanical strength, and easy to be out of shape, so couldn't be used in heavy load and high-speed application. Among these 3 material, UPE have more excellent strength and low friction and could be used to lower temperature (lowest to -150℃). Generally the rings and cage were made with HDP PP or UPE, balls were made with glass stainless or ceramic.

The material of rings and cage: HDP, PP, UPE material.
The material of Balls: Glass Stainless, Ceramic material.

Material:	HDPE / PP / UPE Plastic Material	Basic Properties:	Anti-Acid And Anti-Alkali
Faintish Acid & Alkali Environment:	30% CuCl2 Solution And 30% NAOH Solution	Lower Temperature:	UPE Could Be Used To Lower Temperature (lowest To -150℃)
The Material Of The Rings & Cage:	HDP PP Or UPE	The Material Of Balls:	Glass Stainless Or Ceramic
High Light:	peek ball bearings, pillow block bearings

Basic properties of staple engineer plastic

Material	HDPE	PP	POM	PA66	PVDF	PPS	PTFE	PEEK
Long-time working temp.	90	100	110	100	150	230	260	280
Density	g/cm3	0.91	1.42	1.14	1.77	1.35	2.18	1.32
Ball indentation hardness	50	80	170	170	80	190	30
Tensile stress	25	30	70	80	50	75	25	95
Sliding friction coefficient	0.29	0.3	0.34	0.35-0.42	0.3		0.08-0.1	0.3-0.38
Melted temperature	130	165	175	260	172	280	327	343
Short-time highest application temperature	90	140	150	170	150	260	260	300
Coet of Inear expansion (10^-5/K)	13-15	17	10	8	13	5	12	5
Dielectric constant at 1 Mhz(10^6HZ)	2.4	2.25	3.7	3.6-5	8		2.1	3.2-3.3
Volume resisrivity (Ω·cm)	>10^15	>10^24	>10^14	10^13	10^12	>10^13	10^14	10^13
flammability UL94	+	+	-	(+)	(+)	-	+	+
Anti-weathering	-	-	-	-	-	-	+	-
Note: + =resistant; (+) =partly resistant; - =non-resistant

Chemical properties of Engineer plastic

Chemical Composition	Material
Chemical Composition	PI	PEEK	PTFE	PVDF	PA66	POM	PP	HDPE	ABS
Acrtate	+	+	+	(+)	(+)	+	+	(+)	+
Formic acid (10% water)	+	+	+	+	-	-	+	+	+
Ammonia (10% water)	-	+	+	+	+	(+)	+	+	+
Aether	+		+	+	+	+	+	+
Petrol	+	+	+	+	+	+	(+)	(+)	(+)
Bori acid (10% water)		+	+	(+)	+	+	+	+	+
Aminoform	+	+	+		-	-	(+)	-	-
Aeti aid 100%	(+)	-	+		-	-	+	+	-
Aceti aid (10% water)	+	+	+		-	(+)	+	+	+
HF			+		-	-	+	+	(+)
Formaldehyde aqu (30% water)		+	+	+	+	-	+	+	+
Glycerin	+		+		+	+	+	+	+
Iodine, Glycol	+		+	(+)	-	(+)	+	+	(+)
K2Cr2O7 (10% water)			+	+	+	-	+	+	+
KMnO4 (1% water)	+	+	+	+	-	(+)	+	+	(+)
2-Hydronyprpionic 10%	+		+	+	-	-	+	+	-
2-Hydronyprpionic 90%	+	+	+	+	+	(+)	+	+	+
Nad (10% water)	+	+	+	+	+	+	+	+	+
NaNO3 (10% water)	+		+	+	+	+	+	+	+
NaOH (50% water)		+	+	+	+	-	+	+	+
NaOH (5% water)			+	+	+	-	+	+
Oxalic (10% water)	+	+	+	+	(+)	(+)	+	+	+
Tetracarp	+		+	+	(+)	+	-	-	(+)
H3PO3 100%		+	+		-			+	+
H3PO4 (10% water)		+	+	+	-	-	+		+
NHO3 (2% water)	+	+	+	+	-	-	+	+	+
HCL (2% water)	+	+	+	(+)	-	-	+	+	+
H2SO4 98%		-	+		-	-	+	(+)	-
Soap liquid			+	+	+	+	+	+
Alkaliliquid (10% water)			+	+	+	+	+	+	+
Toluene	+	+	+	+	+	+	+	(+)	-
Water, cold	+	+	+	+	+	+	+	+	+
Water, hot		+	+	+	(+)	-	+	+	+
H2O2 (30% water)		(+)	+	+	-	-	+	+	+
H2O2 (0.5% water)	+		+	+	-	(+)	+	+	+
Asphalt	+		+		(+)	+	(+)	(+)
Note: + =resistant; (+) =partly resistant; - =non-resistant
