Custom Cast Bronze Bearings Machined

Product Description

Top Bearings is a professional leader China Custom Cast Bronze Bearings Machined manufacturers with high quality and reasonable price. Welcome to contact us.

Product Parameter

Bronze Bearings Material:

C93200 / SAE660

Application:

INDUSTRIAL: Thrust Washers, Pumps, Bushings, Machine Parts,

Name:

JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings

Types:

Cylinder Bearings, Thrust Washer, Slide Block, Etc.

High Light:

aluminum bronze bearings

,

flanged bronze bearings

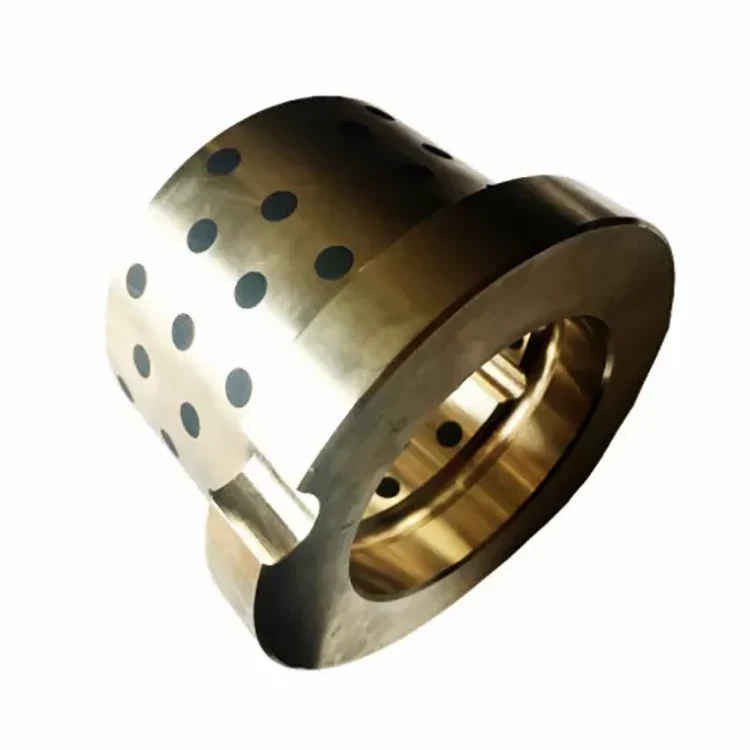

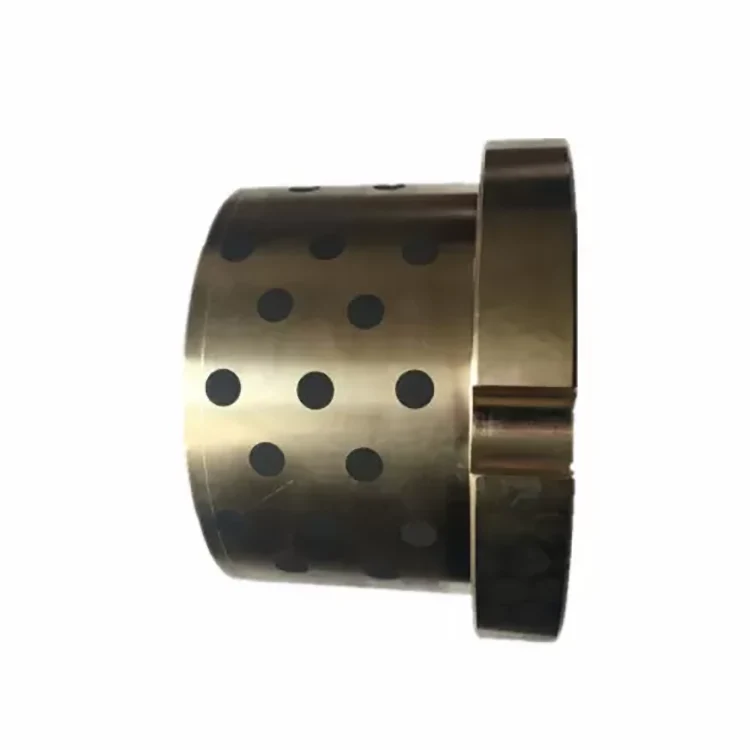

Custom Machined Self Lubricating Plain Bearing / Cast Bronze Bushings

Custom Machined Commercial Excavator Screener Loader Truck Self Lubricating Plain Bearing / Cast Bronze Bushings

Cast Bronze Bushings China CuZn25Al5 material Graphite Lubricating Bronze Bushing.Commercial Truck Plain Sleeve Bushings for Screening equipment bucket Scrap Metal dirt fertilizer urea dap sorting system excavator screener loader telehandler skid steer self-lubricating bearings made to order from china.We Stock and Manufacture Solutions for the Commercial Truck Industry Bushings Sleeve Bushings, Slide Bearings, Thrust Bearings, Injection Block Bearings & Thrust Washers.

AVAILABILITY

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

For more details about our commercial industry manufacturing bushing or other sliding bearings please contact us directly.We are a major supplier of precision components to a range of commercial industries, providing turnkey solutions to customers at competitive rates. Leveraging our state of the art machining capabilities and on-site materials warehouse, we are able to create parts for critical applications from any combination of materials. Our experience encompasses production for a range of businesses including transportation and commercial trucking.

CONSTRUCTION MACHINERY

Excavators Bushings & Bearings, Self-lubricating Guide Bushing, Self-lubricating Guide Bearings

OUR Sliding Bearings are used in the engines and hydraulic systems of excavators and other construction machinery. The self-lubricating graphite plugged bronze sleeve bushings are machined from continuous cast bronze bar stock. They are then milled and plugged with solid lubricant graphite based plugs. The plugged graphite bushings are great for applications where maintenance is difficult and where normal grease. Our cast bronze bushing is based on high strength brass or other material based on your choice, lubricating by oil added in the oil grooves. This type cast bronze sleeve bushing has the same performance with other oiles bearing. but with much higher hardness, twice life time for low speed application compared with tin bronze bushing.

TYPICAL APPLICATIONS

Small and Middle Size Engineering Machines: Bulldozer, Excavator, Loader Cast Bronze Bearings

Material:CuZn25AI5Mn4Fe3
Structure Characteristics and Applications
THE Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion ability in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, etc.

Solid Lubricant Casting Aluminum Bronze Bearings Bronze Bushings

CHARACTERISTICS

with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available.

The Solid lubricating bearings
1. May work without any oil for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can be used in wide range of temperature from -40℃-+300℃

STRUSTURE

The SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

TECHNICAL DATA

Grade	50#	50S1	50S2	50S3	650S5
Material	CuZn25AI5Mn4Fe3	CuSn5Pb5Zn5	CuAI10Ni5Fe5	CuSn12	CuZn25AI5Mn4Fe3
Density	8	8.9	7.8	8.9	8
Hardness	≥210	≥70	≥150	≥75	≥235
Tensile strength	≥750	≥250	≥500	≥270	≥800
Yield strength	≥450	≥90	≥260	≥150	≥450
Elongation	≥12	≥13	≥10	≥5	≥8
Coefficient o linear expansion	1.9×10-5/℃	1.8×10-5/℃	1.6×10-5/℃	1.8×10-5/℃	1.9×10-5/℃
Max.Temp.	-40~+300℃	-40~+400℃	-40~+400℃	-40~+400℃	-40~+300℃
Max.dynamic load	100	60	50	70	120
Max.speed(Dry)	15	10	20	10	15
N/mm²*m/s(Lubrication)	200	60	60	80	200
Compression deformation	< 0.01 mm	< 0.05mm	< 0.04mm	< 0.05mm	< 0.005mm

Chemical Compositions

Product NO.	Chemical Compositions
VSB-50	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
VSB-50	60~66	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2
