Flange Bi Metal Bearings Low Carbon Steel

Product Description

Find a huge selection of Flange Bi Metal Bearings Low Carbon Steel from China at Top Bearings.

Product Parameter

Material:	Low Carbon Steel Wth Tin-Lead-Bronze Alloy (CuPb24Sn)	Types:	Wrapped Bushes With Flange
Application:	Shaft And Con Rod Shaft Of Internal Combustion Engine.	Alloy Hardness:	HB 40-60
Max. Load:	130N/mm²	Max. Working Temperature:	Grease Lubrication Is 150℃, Oil Lubrication Is 250℃
High Light:	bearing thrust washer , steel flange bearing

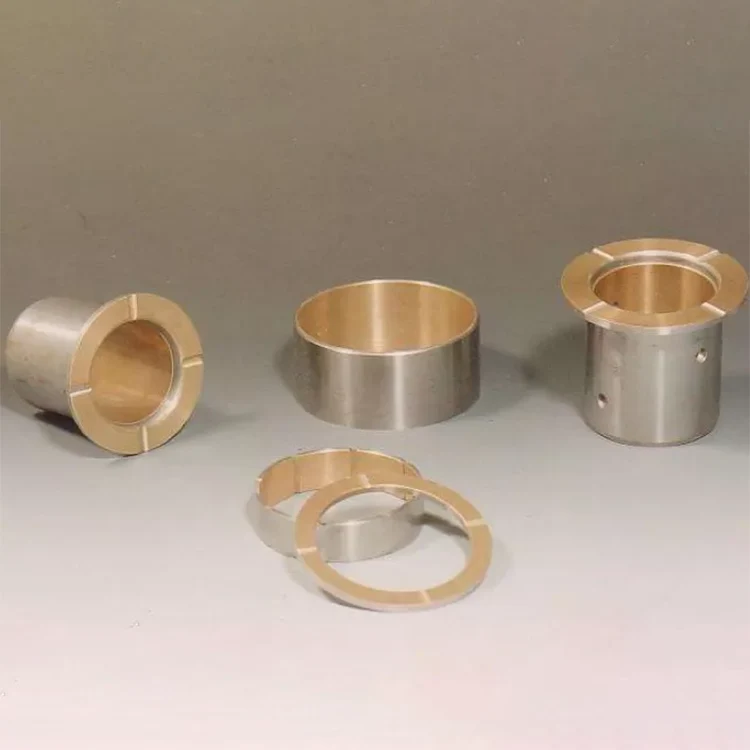

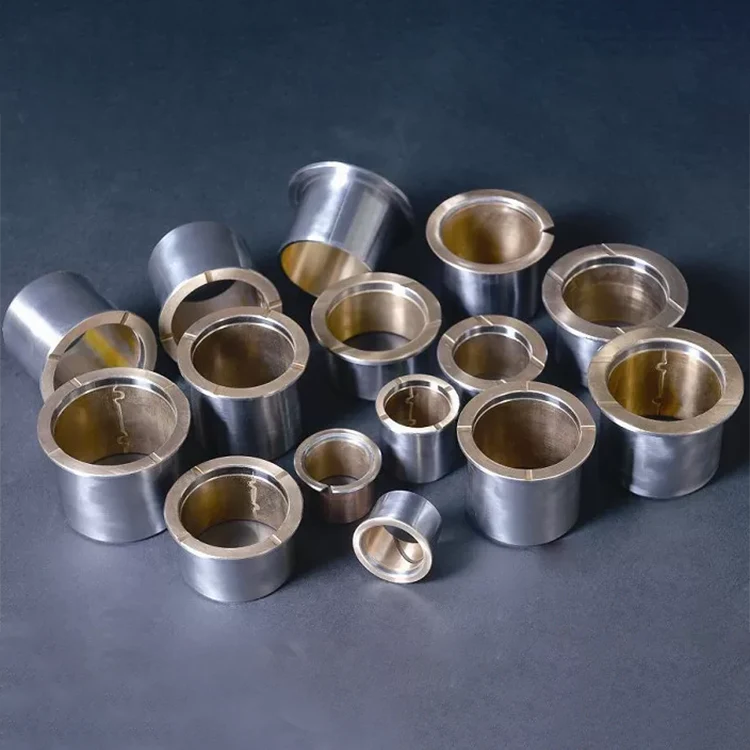

Bimetal Flange Bearings , Low Carbon Steel Wth CuPb24Sn

CuPb24Sn Flange Bimetal Bearings is backed with high quality low carbon steel with Tin-Lead-Bronze alloy (CuPb24Sn) sintered on its surface. To effectively decrease abrasion, CuPb24Sn Flange Bimetal Bearings' alloy surface can be machined with oil grooves for easier oil storage.
When necessary, an erosion protection coating can be plated on the steel back. In common application, CuPb24Sn Flange Bimetal Bearings is mainly used in main shaft and con rod shaft of internal combustion engine.

Physical and Mechanical Performance

Performance Index		Data	Performance Index		Data
Max. Load		130N/mm²	Mating Axis	Hardness	≥45 HRC
Linear Velocity	Grease Lubrication	2.5 m/s		Roughness	Ra=0.16~0.63
	Oil Lubrication	10 m/s	Max. Working Temperature	Grease Lubrication	150℃
Max. PV value	Grease Lubrication	2.8N/mm²·m/s		Oil Lubrication	250℃
	Oil Lubrication	10N/mm²·m/s	Friction Coefficient		0.05~0.15
Anti-tensile Strength		170 N/mm²	Heat-conducting Coefficient		60 W/(m*k)
Alloy hardness		HB 40-60	Heat-expansion Coefficient		19*10^-6k

Alloy Chemical Compositions

Content	Cu	Pb	Sn	Zn	P	Fe	Ni	Sb	Others
Content	Remainder	9-27	0.6-2	0.5	0.1	0.7	0.5	0.2	0.5

Flange Bi Metal Bearings Low Carbon Steel HB 40-60 Alloy Hardness 0
