GR15 Chrome Steel Precision Ball Bearings

High quality GR15 Chrome Steel Precision Ball Bearings is offered by China manufacturers Top Bearings. Buy GR15 Chrome Steel Precision Ball Bearings which is of high quality directly with low price.

Detailed Product Description

 HIGH PRECISION ball bearing/ collating ball joint rod end bearings for the forging machine tools GEG10E

China Factory Spherical Plain Bearing GEG10ES

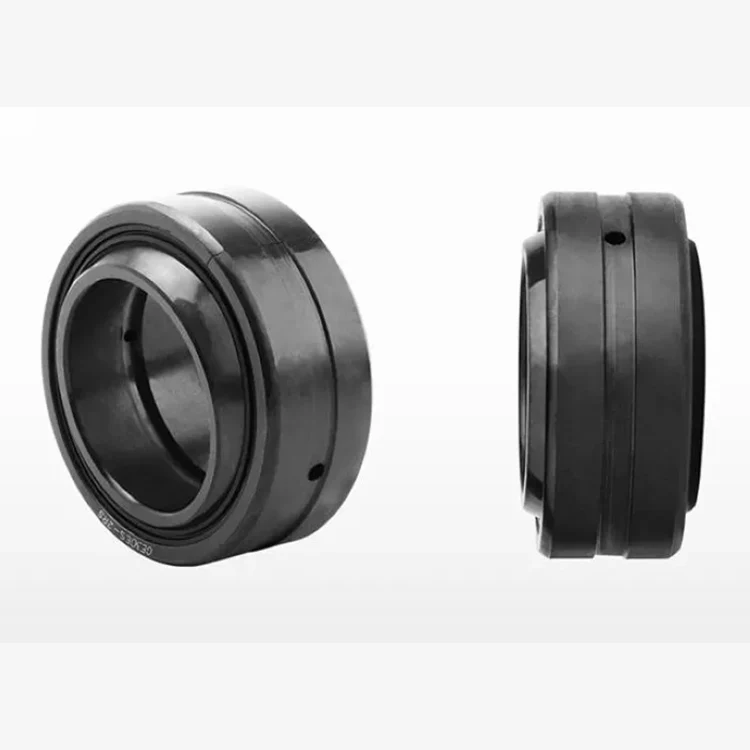

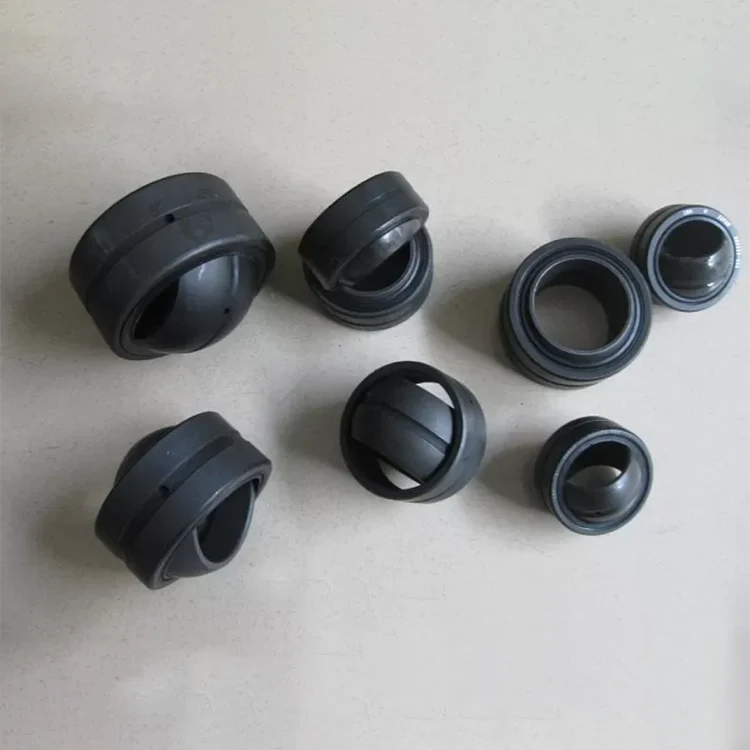

High Quality Spherical Bushings Plain Bearings, MOLYBDENUM DISULPHIDE INSERT, the inner race can swivel like a ball joint; the inner diameter is from 4mm to 460mm. This is a popular bearing that could be used in many applications. 2 Rubber Seals optional (check GE..-2RS type) to protect the bearing from dust or any possible contamination.

Spherical plain bearings have an inner ring with a sphere convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

Spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular republication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.

· 1. Can bear large load

· 2. Different types and structures

· 3. Self-lubricating

· 4. Used for low speed pendulum motion and low-speed rotation

· 5. Can do tilting motion in a certain angle range

· 6. Have bigger load capacity and impact resistant ability

· 7. Resist corrosion, resistant to wear, self-aligning, good lubrication

· 8. Can work normally even installation dislocation

Types of Spherical plain bearing GE Series

FAQ

1. Q: Manufacturer or Trading Company:

A: We have our own factory to produce goods for you.

2. Q: Material/ quality?

A: Chrome steel, carbon steel, ceramic bearings, ISO9001:2008 certificate to ensure quality.

3. Q: about samples:

A: Samples is free offered except large bearings, shipping cost should be paid by buyer, the shipping cost will be refund after order confirmed.

4. Q: Capacity for supply goods?

A: about 2-15 days can delivery your goods after received your deposit or payment.

5. Q: Package and shipping?

A: 1: 1pc/plastic bag + color box + carton + plywood pallets.

2: barreled package outer carton pallets

3: single box outer carton pallets

4: tube package middle box outer carton pallets

5: According to your requirement.
