Graphite Plugged Oiles Plain C95400 Cast Bronze Bearings

As the professional manufacturers, Top Bearings would like to provide you Graphite Plugged Oiles Plain C95400 Cast Bronze Bearings. And we will offer you the best after-sale service and timely delivery.

Product Parameter

Certification:	SEA430B,C86300,DIN1709,FIBRO	Type:	Flange Bushings,Cylinder Bearings With Flange
Material:	Aluminium Bronze With Graphite	Characteristics:	Wear Resistance And Corrosion Resistance
High Light:	C95400 Cast Bronze Bearings ,  Graphite Plugged Cast Bronze Bearings

Maintenance-free plain bearings with lubricating plugs C95400 Graphite Plugged Oiles Aluminium Bronze Bearing Cast Bronze Bushings

Aluminium bronze bush is a type of oilless bearing.It's also called guide bush,cast bearing ,plain sliding bearing,solid bronze bearing,graphite inlaid bearing,solid sliding bearing,oiles 500 and self lubricating bearing.



Cast Bronze Bushings

Aluminum bronze is the highest strength standard copper based alloy.TOP BEARINGS produces C95400, C95500 and C95900 in standard sizes of Cast Bronze Bushings . Aluminum, in conjunction with iron and nickel in C95500, acts as a strengthener in these alloys. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.



C95400 U.S. standard aluminum bronze alloy

Aluminum bronze containing iron, with high strength and antifriction, good corrosion resistance, good processing under hot pressure, welding and gas welding, but poor brazing.It is characterized by good wear resistance.Aluminum bronze, containing iron and aluminum elements, has high strength and abrasion resistance. After quenching and tempering, the hardness can be improved. It has good high temperature corrosion resistance and oxidation resistance.Machinability is ok, but welding is not easy to fibrillar welding, hot processing under pressure is good.

Aluminum bronze graphite inlaid bearing is based on aluminum bronze matrix, according to the working condition according to a certain proportion in its working face machining holes and filled with solid lubricant after CNC machining center finishing.Aluminum bronze has a good corrosion resistance, the surface is inlaid with graphite oil, to achieve the non-lubricating solid lubrication.Due to the addition of iron and nickel in the matrix material, the hardness and bearing capacity of the product are obviously improved, and the product has good self-lubrication performance, wear resistance and corrosion resistance.The products are mainly suitable for medium speed and medium load occasions.



Solid Bronze Metallic Self-lubricating Bearing Plug Graphite Flange Cast Bronze Bearing Bronze Lubrication



Material Structure

Aluminum bronze + solid lurbicants



Characteristics

Cost effective and higher crash strength comparing with tin-bronze type.

Its ends can even be welded with machine part and assemble together.



Availability

Cylindrical bushing, flanged bushing, thrust washer and slide plate are standard fabrication.

Special designs and material can be made according to your design.



Application

Aluminium bronze bush is widely used in metallurgy machine, construction machine, ail transportation machinery and other condition where oil is hard to add.

C95400 BRONZE BUSHINGS Technical Data

Max. dynamic load	70N/mm2
Max. Temperature	300
Base Hardness	HB60-90
Friction coefficient	<0.15
Highest sliding speed	2m/s



Description

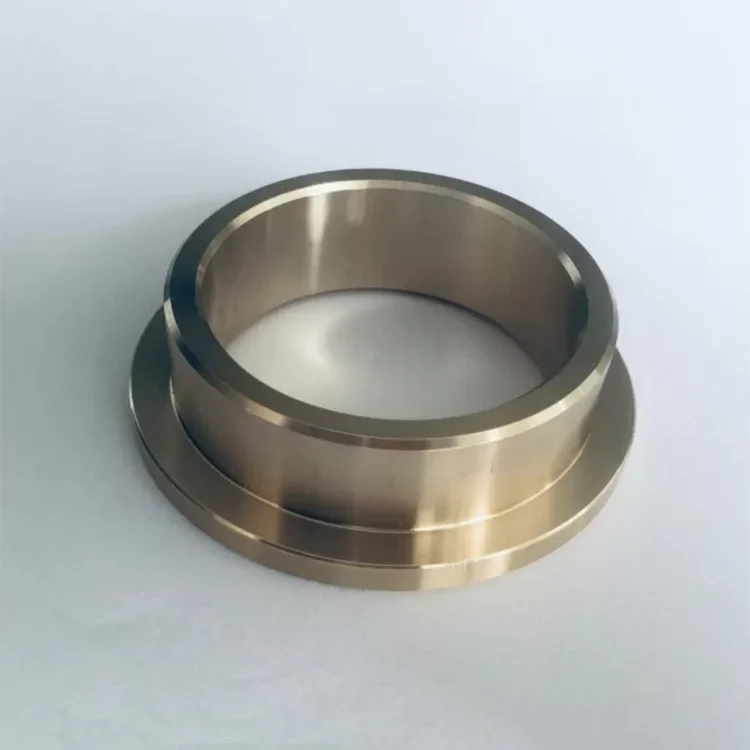

TOB-50 FlangeSolid Bronze Metallic Self-lubricating Bearings

Copper Cast Bronze Bearings / Flanged Bronze Bearings

Cast Bronze Bearing with Graphite Plugs



Characteristics

TOB-50 Flange

1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃



Strusture

TOB-50 Flange material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



Technical Data

Grade	50#	50S1	50S2	50S3	650S5
Material	CuZn25AI5Mn4Fe3	CuSn5Pb5Zn5	CuAI10Ni5Fe5	CuSn12	CuZn25AI5Mn4Fe3
Density	8	8.9	7.8	8.9	8
Hardness	≥210	≥70	≥150	≥75	≥235
Tensile strength	≥750	≥250	≥500	≥270	≥800
Yield strength	≥450	≥90	≥260	≥150	≥450
Elongation	≥12	≥13	≥10	≥5	≥8
Coefficient o linear expansion	1.9×10-5/℃	1.8×10-5/℃	1.6×10-5/℃	1.8×10-5/℃	1.9×10-5/℃
Max.Temp.	-40~+300℃	-40~+400℃	-40~+400℃	-40~+400℃	-40~+300℃
Max.dynamic load	100	60	50	70	120
Max.speed(Dry)	15	10	20	10	15
N/mm²*m/s(Lubrication)	200	60	60	80	200
Compression deformation	< 0.01 mm	< 0.05mm	< 0.04mm	< 0.05mm	< 0.005mm



Chemical Compositions

Product NO.	Chemical Compositions
TOB-50	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
	60~66	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2



Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

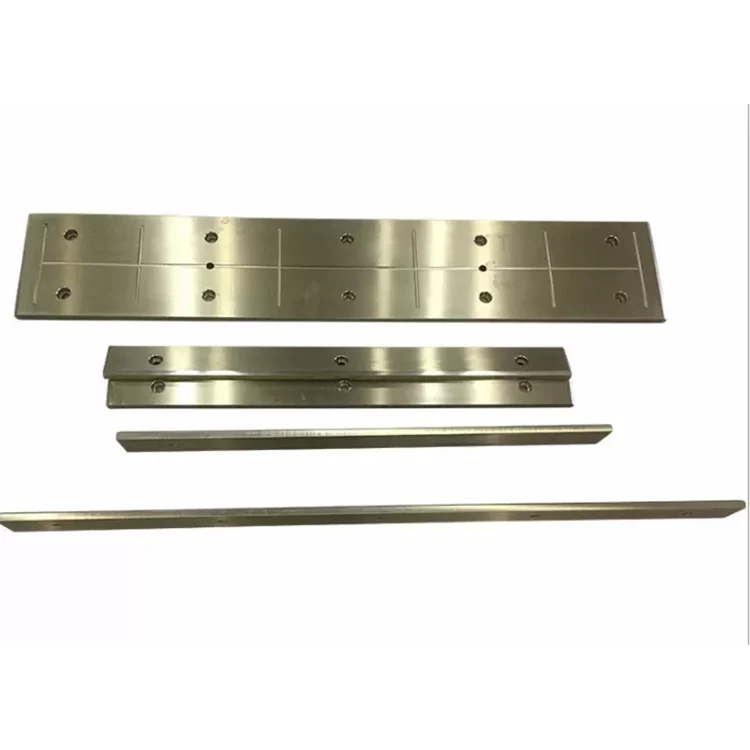

· Sliding plates
