High Strength Bronze Alloy Bronze Thrust Washer

Product Description

As a professional high quality High Strength Bronze Alloy Bronze Thrust Washer manufacturers, you can rest assured to buy High Strength Bronze Alloy Bronze Thrust Washer from Top Bearings and we will offer you the best after-sale service and timely delivery.

Product Parameter

Material:	High Strength Bronze Alloy With Solid Lubricant Plugs	Application:	Consecutive Casting And Rolling Machines, Mine-exploiting Equipment, Ships, Steam Engine, Injection Molders And Auto Molds, Etc.
Types:	Thrust Washer	Name:	JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
Hardness:	≥260 HB	Working Temperature Limits:	-40~+300℃
High Light:	solid lubricant bearings , aluminum bronze bearings

High Strength Bronze Alloy With Solid Lubricant Plugs Casting Bronze Thrust Washer

OILES 500# Thrust Washer is backed with high strength bronze alloy. The surface is regularly and finely machined with sockets in which particular solid lubricant plugs is filled.

By made mid-sized holes in order and then insert the solid lubricant plugs into the holes in the bronze bushing to apply the bushings under oil-free conditions.

OILES 500# Bronze based and processed by turning technics. There can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect. OILES 500# Thrust Washer is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, injection molders and auto molds, etc.

Chemical Compositions

Product NO.	Chemical Compositions
TOB 051	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
TOB 051	60~65	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2

Physical and Mechanical Performance

Performance Index		Data	Performance Index			Data
Density	g/cm³	8.2	Hardness		HB	≥260
Linear Expansion Coefficient	10^-5/℃	1.6-2.0	Flexibility Coefficient		KN/mm²	80-120
Heat-conducting Coefficient	W/(m·k)	38-55	Tensility		%	≥2
Tensile Strength	N/mm²	≥850	Friction	Oil Lubrication	μ	0.03
Anti-compact Tenacity	≥KJ/m^3	300-400	Friction	Dry Friction	μ	0.16

Application Condition Limits

Lubrication Conditions		Non- Lubrication	Periodical Lubrication	Consecutive Lubrication
Working Temperature Limits	℃	-40~+300	-40~+150	-40~+150
Max. Load pressure	N/mm²	130	130	130
Max. Linear Velocity	m/s	0.30	0.80	1.25
Max. PV Value	N/mm²·m/s	1.65	3.25	3.25

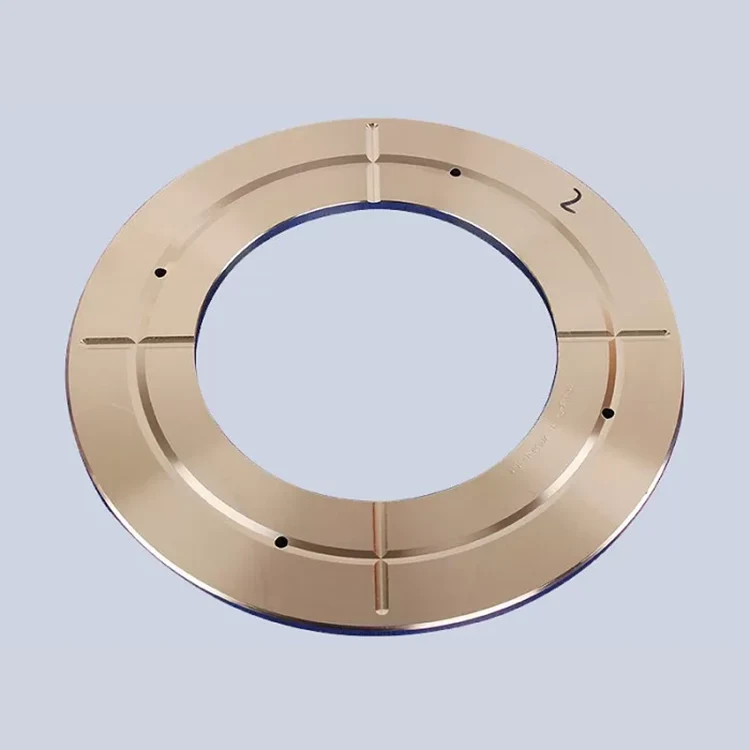

High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing 1

High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing 2
