Hydraulic Cylinder Cast Bronze Bearings

Product Description

Top Bearings is a leading China Hydraulic Cylinder Cast Bronze Bearings manufacturers, suppliers and exporter.

Product Parameter

Material:	Strengthening Brass With Solid Lubricant	Application:	Consecutive Casting And Rolling Machines, Mine-exploiting Equipment, Ships, Steam Engine, Etc.
Types:	Cylinder Bearings With Flange	Name:	JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
Hardness:	≥210 HB	Working Temperature Limits:	-40~+300℃
High Light:	aluminum bronze bearings , flanged bronze bearings

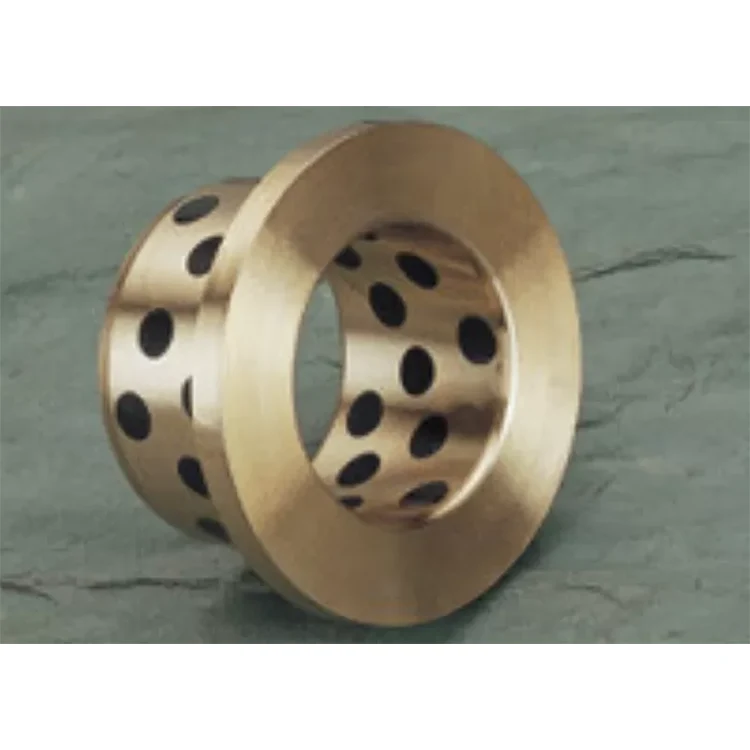

Strengthening Brass With Solid Lubricant Casting Bronze Bearings with Flange

JDB Bearing is backed with strengthening brass that has good physical performance and good capability for casting.

JDB Bearing is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, etc.

Avoid use in seawater.

Strengthening Brass + Solid Lubricant Bearings with Flange can be used with rotary, reciprocating shaking motion and movement.

Embedded in the falnge part because there is no lubricant, not axial load.

What’s more, the brass backing has pretty good anti-erosion ability in air, fresh water and seawater. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled.

Diamater 31.5mm-63mm hydraulic cylinder is put on the intermediate shaft using fresh products.

Chemical Compositions

Product NO.	Chemical Compositions
TOB 050	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
TOB 050	60~66	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2

Physical and Mechanical Performance

Performance Index		Data	Performance Index			Data
Density	g/cm³	8.2	Hardness		HB	≥210
Linear Expansion Coefficient	10^-5/℃	1.6-2.0	Flexibility Coefficient		KN/mm²	120-140
Heat-conducting Coefficient	W/(m·k)	38-55	Tensility		%	≥12
Tensile Strength	N/mm²	≥755	Friction	Oil Lubrication	μ	0.03
Anti-compact Tenacity	≥KJ/m^3	400-500	Friction	Dry Friction	μ	0.16

Application Condition Limits

Lubrication Conditions		Non- Lubrication	Periodical Lubrication	Consecutive Lubrication
Working Temperature Limits	℃	-40~+300	-40~+150	-40~+150
Max. Load pressure	N/mm²	100	100	100
Max. Linear Velocity	m/s	0.50	1.00	1.50
Max. PV Value	N/mm²·m/s	1.65	3.25	3.25

Hydraulic Cylinder Cast Bronze Bearings / Casting Solid Lubricant Bearings 0

Hydraulic Cylinder Cast Bronze Bearings / Casting Solid Lubricant Bearings 1
