Metric Size Oilless Bronze Bushing With SOB Maintenance

As the professional manufacturers, Top Bearings would like to provide you Metric Size Oilless Bronze Bushing With SOB Maintenance. And we will offer you the best after-sale service and timely delivery.

Product Parameter

Supply Ability:	Plug Graphite Bearings, China, Manufacturers, Suppliers, Factory, Wholesale, Metal Journal Bearing,  DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing	Application:	Engineering Machinery，mould Bronze Bushing
Processing Method:	CNC Processing	Packaging Details:	STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Bushing Material:	Bronze With Solid Lubricant	Bushing Application:	Parts Repair And Fabrication Services (Heavy Equipments, Automotive, Shipping Industry, Machinery, Etc)
High Light:	Metric Oilless Bronze Bushing ,  SOB Maintenance Oilless Bronze Bushing ,  Bronze Oil Free Bearing



Bronze Metric Size Oil Free Bearing With SOB Maintenance
SOB Maintenance-Free Bearing, Bronze With Solid Lubricant

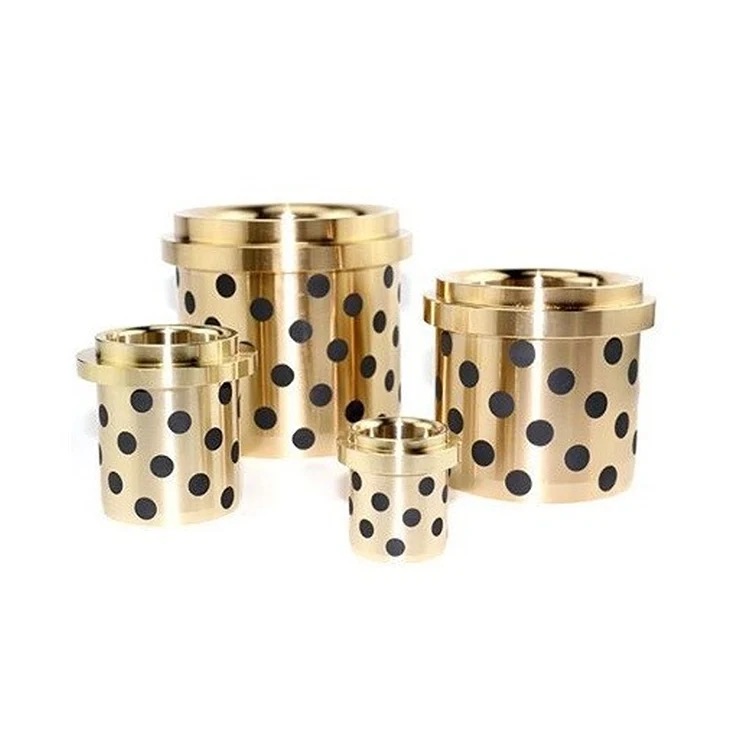

SOBF Flanged bush, self-lubricating,Universal machinery bronze bushing bearing sleeve self lubrication bushing

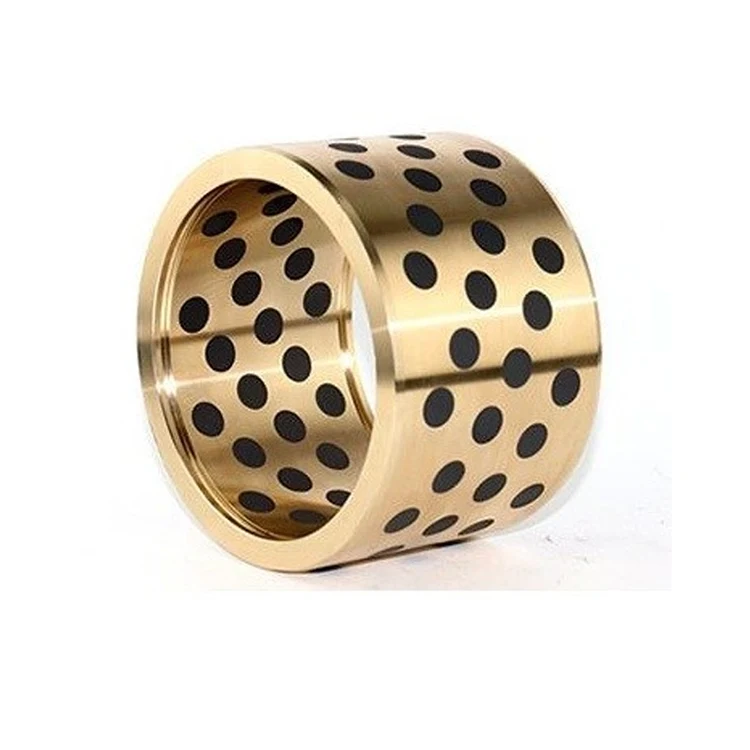

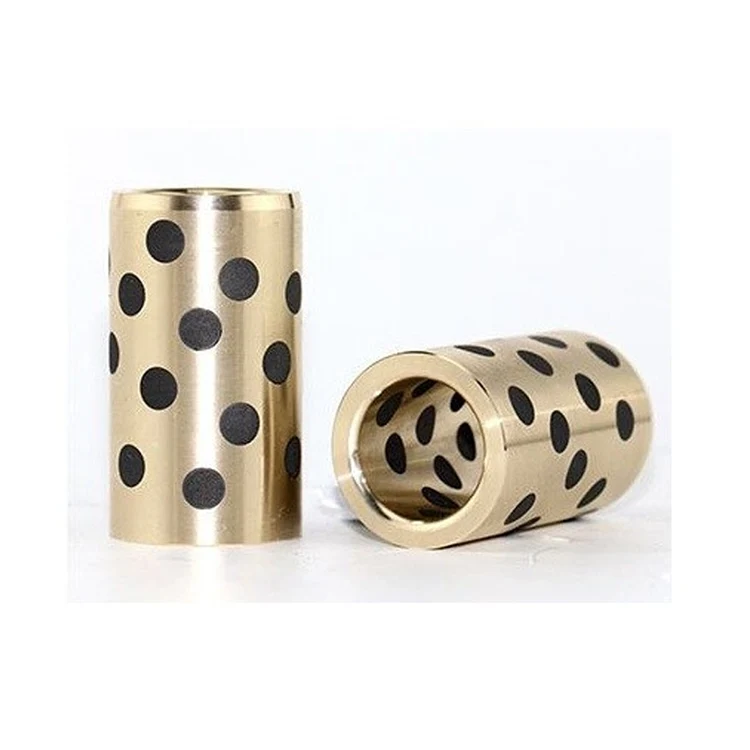

SOBF bearings consist of highly wear-resistance copper cast alloy whose sliding surfaces are evenly provided with a certain percentage of solid lubricant plugs according to work condition, high-strength copper alloy provides a high load-bearing capacity and the solid lubricant can be formation of low friction film.
CNC machining parts, bronze bushing

The advantages of SOBF bearings : dry operation; can be performed well with high load and low speed; reciprocating motion, wagging motion, start and stop frequently are difficulty for keeping oil film. It still may play advantageous of wear resistance; Excellent chemical resistance and anti corrosion; Flexible, simple, convenient and abundant designing of standard, can be chosen by.


Application

Variants:
Articlenumber	Article name	Inner diameter d	Outer diameter D	Length L	D1	l	f	r
118008010	SOBF8-12-10	8	12	10	20	2	0,5
118008012	SOBF8-12-12	8	12	12	20	2	0,5
118008015	SOBF8-12-15	8	12	15	20	2	1
118010010	SOBF10-14-10	10	14	10	22	2	1
118010012	SOBF10-14-12	10	14	12	22	2	1
118010015	SOBF10-14-15	10	14	15	22	2	1
118010017	SOBF10-14-17	10	14	17	22	2	1
118010020	SOBF10-14-20	10	14	20	22	2	1
118012010	SOBF12-18-10	12	18	10	25	3	1
118012012	SOBF12-18-12	12	18	12	25	3	1
118012015	SOBF12-18-15	12	18	15	25	3	1
118012020	SOBF12-18-20	12	18	20	25	3	1
118012025	SOBF12-18-25	12	18	25	25	3	1
118012030	SOBF12-18-30	12	18	30	25	3	1
118013010	SOBF13-19-10	13	19	10	26	3	1
118013012	SOBF13-19-12	13	19	12	26	3	1
118013015	SOBF13-19-15	13	19	15	26	3	1
118013020	SOBF13-19-20	13	19	20	26	3	1
118013025	SOBF13-19-25	13	19	25	26	3	1
118013030	SOBF13-19-30	13	19	30	26	3	1
118014015	SOBF14-20-15	14	20	15	27	3	1
118014020	SOBF14-20-20	14	20	20	27	3	1
118014025	SOBF14-20-25	14	20	25	27	3	1
118015010	SOBF15-21-10	15	21	10	28	3	1
118015012	SOBF15-21-12	15	21	12	28	3	1
118015015	SOBF15-21-15	15	21	15	28	3	1
118015020	SOBF15-21-20	15	21	20	28	3	1
118015025	SOBF15-21-25	15	21	25	28	3	1
118015030	SOBF15-21-30	15	21	30	28	3	1
118016012	SOBF16-22-12	16	22	12	29	3	1
118016015	SOBF16-22-15	16	22	15	29	3	1
118016018	SOBF16-22-18	16	22	18	29	3	1
118016020	SOBF16-22-20	16	22	20	29	3	1
118016023	SOBF16-22-23	16	22	23	29	3	1
118016025	SOBF16-22-25	16	22	25	29	3	1
118016030	SOBF16-22-30	16	22	30	29	3	1
118016035	SOBF16-22-35	16	22	35	29	3	1
118016040	SOBF16-22-40	16	22	40	29	3	1
118018015	SOBF18-24-15	18	24	15	32	3	1
118018020	SOBF18-24-20	18	24	20	32	3	1
118018025	SOBF18-24-25	18	24	25	32	3	1
118018030	SOBF18-24-30	18	24	30	32	3	1
118018035	SOBF18-24-35	18	24	35	32	3	1
118018040	SOBF18-24-40	18	24	40	32	3	1
118020015	SOBF20-30-15	20	30	15	40	5	1
118020020	SOBF20-30-20	20	30	20	40	5	1
118020025	SOBF20-30-25	20	30	25	40	5	1
118020030	SOBF20-30-30	20	30	30	40	5	1
118020035	SOBF20-30-35	20	30	35	40	5	1
118020040	SOBF20-30-40	20	30	40	40	5	1
118025015	SOBF25-35-15	25	35	15	45	5	1
118025020	SOBF25-35-20	25	35	20	45	5	2
118025025	SOBF25-35-25	25	35	25	45	5	2
118025030	SOBF25-35-30	25	35	30	45	5	2
118025035	SOBF25-35-35	25	35	35	45	5	2
118025040	SOBF25-35-40	25	35	40	45	5	2
118025050	SOBF25-35-50	25	35	50	45	5	2
118030020	SOBF30-40-20	30	40	20	50	5	2
118030025	SOBF30-40-25	30	40	25	50	5	2
118030030	SOBF30-40-30	30	40	30	50	5	2
118030035	SOBF30-40-35	30	40	35	50	5	2
118030040	SOBF30-40-40	30	40	40	50	5	2
118030050	SOBF30-40-50	30	40	50	50	5	2
118031020	SOBF31,5-40-20	31,5	40	20	50	5	2
118031030	SOBF31,5-40-30	31,5	40	30	50	5	2
118031035	SOBF31,5-40-35	31,5	40	35	50	5	2
118031040	SOBF31,5-40-40	31,5	40	40	50	5	2
118035020	SOBF35-45-20	35	45	20	60	5	2
118035025	SOBF35-45-25	35	45	25	60	5	2
118035030	SOBF35-45-30	35	45	30	60	5	2
118035035	SOBF35-45-35	35	45	35	60	5	2
118035040	SOBF35-45-40	35	45	40	60	5	2
118035050	SOBF35-45-50	35	45	50	60	5	2
118040020	SOBF40-50-20	40	50	20	65	5	2
118040025	SOBF40-50-25	40	50	25	65	5	2
118040030	SOBF40-50-30	40	50	30	65	5	2
118040035	SOBF40-50-35	40	50	35	65	5	2
118040040	SOBF40-50-40	40	50	40	65	5	2
118040050	SOBF40-50-50	40	50	50	65	5	2
118045030	SOBF45-55-30	45	55	30	70	5	2
118045035	SOBF45-55-35	45	55	35	70	5	2
118045040	SOBF45-55-40	45	55	40	70	5	2
118045050	SOBF45-55-50	45	55	50	70	5	2
118045060	SOBF45-55-60	45	55	60	70	5	2
118050030	SOBF50-60-30	50	60	30	75	5	2
118050035	SOBF50-60-35	50	60	35	75	5	2
118050040	SOBF50-60-40	50	60	40	75	5	2
118050050	SOBF50-60-50	50	60	50	75	5	2
118050060	SOBF50-60-60	50	60	60	75	5	2
118055040	SOBF55-65-40	55	65	40	80	5	2
118055060	SOBF55-65-60	55	65	60	80	5	2
118060040	SOBF60-75-40	60	75	40	90	7,5	3
118060050	SOBF60-75-50	60	75	50	90	7,5	3
118060080	SOBF60-75-80	60	75	80	90	7,5	3
118065060	SOBF65-80-60	65	80	60	95	7,5	3
118070050	SOBF70-85-50	70	85	50	105	7,5	3
118070080	SOBF70-85-80	70	85	80	105	7,5	3	1
118075060	SOBF75-90-60	75	90	60	110	7,5	3	1
118080060	SOBF80-100-60	80	100	60	120	10	3	1
118080080	SOBF80-100-80	80	100	80	120	10	3	1
118080100	SOBF80-100-100	80	100	100	120	10	3	1
118090060	SOBF90-110-60	90	110	60	130	10	3	1
118090080	SOBF90-110-80	90	110	80	130	10	3	1
118100080	SOBF100-120-80	100	120	80	150	10	3	1
118100100	SOBF100-120-100	100	120	100	150	10	3	1
118120080	SOBF120-140-80	120	140	80	170	10	3	1
118120100	SOBF120-140-100	120	140	100	170	10	3	1
118130080	SOBF130-150-80	130	150	80	180	10	3	1
118130100	SOBF130-150-100	130	150	100	180	10	3	1
118140080	SOBF140-160-80	140	160	80	190	10	3	1
118140100	SOBF140-160-100	140	160	100	190	10	3	1
118150100	SOBF150-170-100	150	170	100	200	10	3	1
118150120	SOBF150-170-120	150	170	120	200	10	3	1
118160100	SOBF160-180-100	160	180	100	210	10	3	1
118160120	SOBF160-180-120	160	180	120	210	10	3	1
