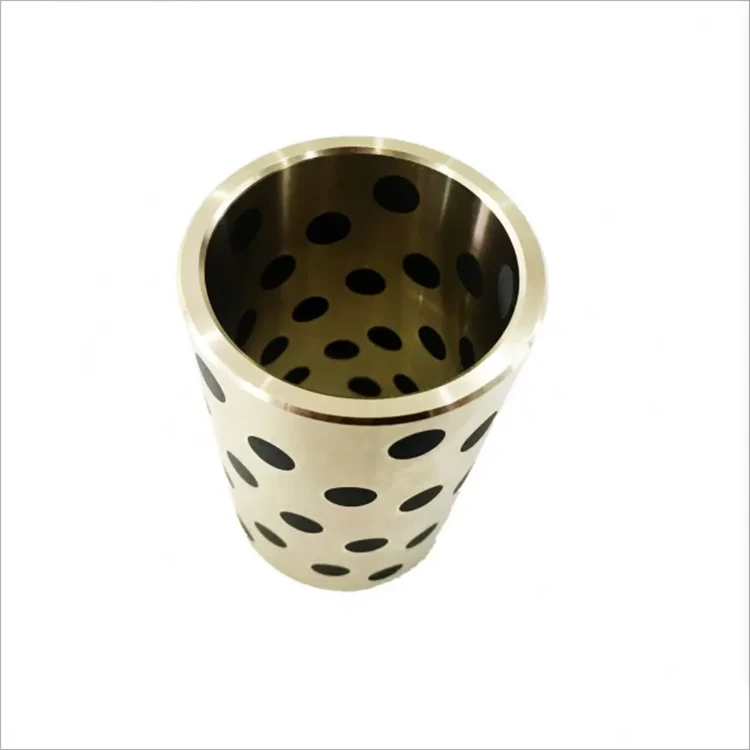

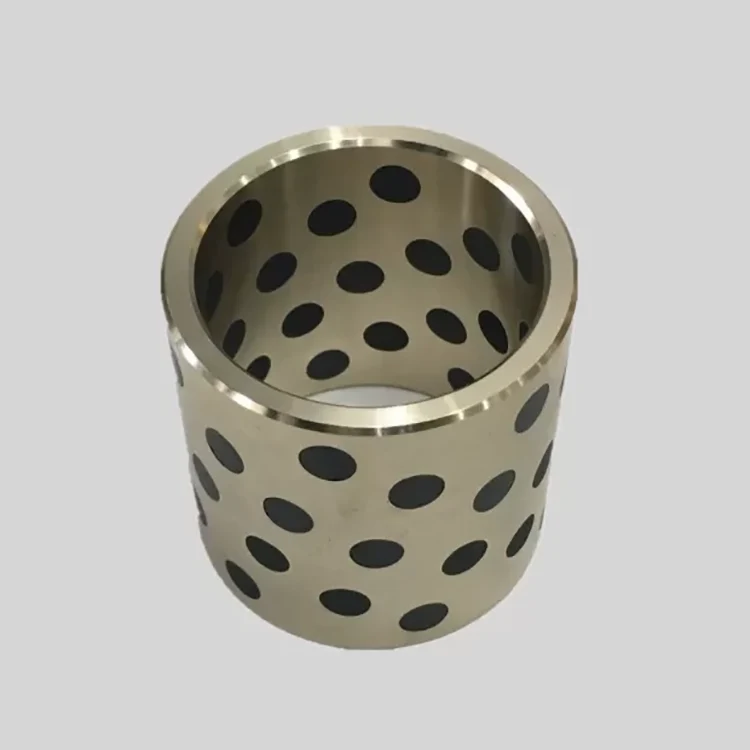

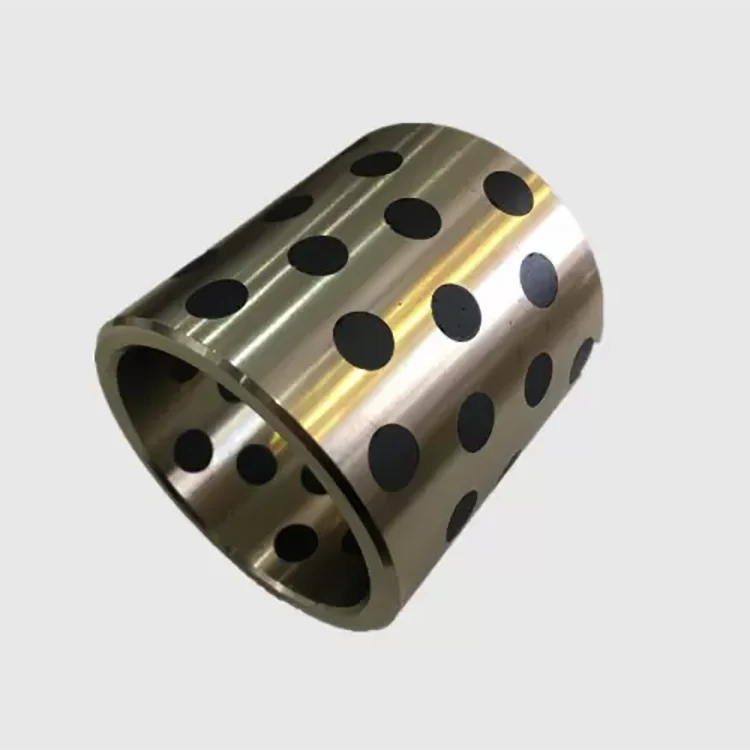

Phosphor Cast Bronze Bearings Graphite Plugged

Product Description

Top Bearings is China manufacturers and suppliers who mainly produces Phosphor Cast Bronze Bearings Graphite Plugged with many years of experience. Hope to build business relationship with you.

Product Parameter

Bronze Bearings Material:

Phosphor Bronze Graphite Bushing

Application:

Rubber Machine, Light Industry And Machine Tools Industry Etc.

Standard Material:

DIN GB-CuSn5Zn5Pb5

Additional Information:

#500-serie, BWG, BWG-F, COB-05, COB-050 T.o.m. -055, COB-056 T.o.m. -057, CSB 650-serie, JDB-serie

High Light:

aluminum bronze bearings

,

flanged bronze bearings

Phosphor Bronze Graphite Plugged Bushings Cast Bronze Bearings Material

Cylindrical product: bushings, bearings, bronze bearings

Flat product: slide plates, guide bushing

Continuous casting centrifugal casting,Bronze Plugged Graphite Bearings Cast Bronze Bearings Material made to order online.It is based on high strength copper alloy of special techniques. The solid lubricant is inlayed by certain angle, density and special formula, and then is processed exactly. The product is widely applied to casting machine, mining machinery, shipping, steam turbine, Injection machinery and automobile mounding, etc.

Material Compostion and Properties
Code	BRONZE PARTS	BRONZE PARTS	BRONZE PARTS	BRONZE PARTS	BRONZE PARTS	BRONZE PARTS	BRONZE PARTS
Code	(500#)	(500#S1)	(500#S2)	(500#S3)	(500#S4)	(HT250)	(Gcr15)
Code	CuZn25Al	CuZn25Al	CuAl9Fe4	CuSn5P	CuSn12	HT250	Gcr15
Code	5Mn3Fe3	5Mn3Fe3	Ni4Mn2	b5Zn5	CuSn12	HT250	Gcr15
Density	8	8	8.5	8.9	9.05	7.3	7.8
Hardness HB	＞210	＞250	＞150	＞70	＞80	＞190	HRC＞58
N/mm2 Tensile strength	＞750	＞800	＞800	＞200	＞260	＞250	＞1500
Elongation%	＞12	＞8	＞15	＞10	＞8	＞5	＞15
Coefficien of linear expansion 10-5/℃	1.9	1.9	1.9	1.8	1.8	1	1.1
Limit Temp℃	-40~+300	-40~+150	-40~+400	-40~+400	-40~+400	-40~+400	-40~+400
Max.load N/mm2	100	120	150	60	70	80	200
m/min Max.speed (Dry)	15	15	20	10	10	8	5
Max.PVN/mm2 *m/min	200	200	60	60	80	40	150
300N/mm2	＜0.01	＜0.005	＜0.04	＜0.05	＜0.05	＜0.015	＜0.002

Base Material International
Material Codes	China Brands GB1176-87	Intenational ISO 1338	Germany DIN	Japan JIS	America ASTM(UNS)	England BS	France NF
BRONZE PARTS(500#)	ZCuZn25Al6 Fe3Mn3	GCuZn25Al6 Fe3Mn3	DIN1709 G-CuZn25Al5	H5102 CAC304	B30-92 C86300	HTB2
BRONZE PARTS(500#S1)	ZCuZn25Al6 Fe3Mn3	GCuZn25Al6 Fe3Mn3	DIN1709 G-CuZn25Al5	H5102 CAC304	B30-92 C86300	HTB2
BRONZE PARTS(500#S2)	ZCuSn5 Pb5Zn5	GCuPb5 Sn5Zn5	DIN1705 G-CuSn5ZnPb	H5111 BC6	B30-92 C83600	LG2	CuPb5 Sn5Zn5
BRONZE PARTS(500#S3)	ZCuAl9Fe4 Ni4Mn2	GCuAl10 FeNi5	DIN17656 G-CuAl10Ni	H5114 AlBC3	B30-92 C95500	AB2	CuAl10 Fe5Ni5
BRONZE PARTS(HT250)	GB5675-85 HT250			FC250	ASTM Class40
Solid Lubricant
Lubricant	Features	Typical application
Graphite+add	Excellent resistance against chemical attacks and low friction, Temp limit 400℃	Suit for general machines and under atmosphere

Type	Spec	Type	Spec
BRONZE GRAPHITE BUSHING	808	8×12×8	BRONZE GRAPHITE BUSHING	1640	16×22×40
BRONZE GRAPHITE BUSHING	810	8×12×10	BRONZE GRAPHITE BUSHING	1812	18×24×12
BRONZE GRAPHITE BUSHING	812	8×12×12	BRONZE GRAPHITE BUSHING	1815	18×24×15
BRONZE GRAPHITE BUSHING	815	8×12×15	BRONZE GRAPHITE BUSHING	1820	18×24×20
BRONZE GRAPHITE BUSHING	1008	10×14×8	BRONZE GRAPHITE BUSHING	1825	18×24×25
BRONZE GRAPHITE BUSHING	1010	10×14×10	BRONZE GRAPHITE BUSHING	1830	18×24×30
BRONZE GRAPHITE BUSHING	1012	10×14×12	BRONZE GRAPHITE BUSHING	2010	20×28×10
BRONZE GRAPHITE BUSHING	1015	10×14×15	BRONZE GRAPHITE BUSHING	2012	20×28×12
BRONZE GRAPHITE BUSHING	1020	10×14×20	BRONZE GRAPHITE BUSHING	2016	20×28×16
BRONZE GRAPHITE BUSHING	1208	12×18×8	BRONZE GRAPHITE BUSHING	2019	20×28×19
BRONZE GRAPHITE BUSHING	1210	12×18×10	BRONZE GRAPHITE BUSHING	2020	20×28×20
BRONZE GRAPHITE BUSHING	1212	12×18×12	BRONZE GRAPHITE BUSHING	2025	20×28×25
BRONZE GRAPHITE BUSHING	1215	12×18×15	BRONZE GRAPHITE BUSHING	2030	20×28×30
BRONZE GRAPHITE BUSHING	1216	12×18×16	BRONZE GRAPHITE BUSHING	2035	20×28×35
BRONZE GRAPHITE BUSHING	1219	12×18×19	BRONZE GRAPHITE BUSHING	2040	20×28×40
BRONZE GRAPHITE BUSHING	1220	12×18×20	BRONZE GRAPHITE BUSHING	2050	20×28×50
BRONZE GRAPHITE BUSHING	1225	12×18×25	BRONZE GRAPHITE BUSHING	2512	25×33×12
BRONZE GRAPHITE BUSHING	1230	12×18×30	BRONZE GRAPHITE BUSHING	2516	25×33×16
BRONZE GRAPHITE BUSHING	1310	13×19×10	BRONZE GRAPHITE BUSHING	2520	25×33×20
BRONZE GRAPHITE BUSHING	1312	13×19×12	BRONZE GRAPHITE BUSHING	2525	25×33×25
BRONZE GRAPHITE BUSHING	1315	13×19×15	BRONZE GRAPHITE BUSHING	2530	25×33×30
BRONZE GRAPHITE BUSHING	1320	13×19×20	BRONZE GRAPHITE BUSHING	2535	25×33×35
BRONZE GRAPHITE BUSHING	1410	14×20×10	BRONZE GRAPHITE BUSHING	2540	25×33×40
