Solid Lubricant Cast Bronze Bearings Thrust Washer
Top Bearings is China manufacturers and suppliers who mainly produces Solid Lubricant Cast Bronze Bearings Thrust Washer with many years of experience. Hope to build business relationship with you.
Send Inquiry
Product Description
Top Bearings is China manufacturers and suppliers who mainly produces Solid Lubricant Cast Bronze Bearings Thrust Washer with many years of experience. Hope to build business relationship with you.
Product Parameter
|
Material: |
Strengthening Brass With Solid Lubricant |
Application: |
Consecutive Casting And Rolling Machines, Mine-exploiting Equipment, Ships, Steam Engine, Etc. |
|
Types: |
Thrust Washer |
Name: |
JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings |
|
Hardness: |
≥210 HB |
Working Temperature Limits: |
-40~+300℃ |
|
High Light: |
aluminum bronze bearings , flanged bronze bearings |
||

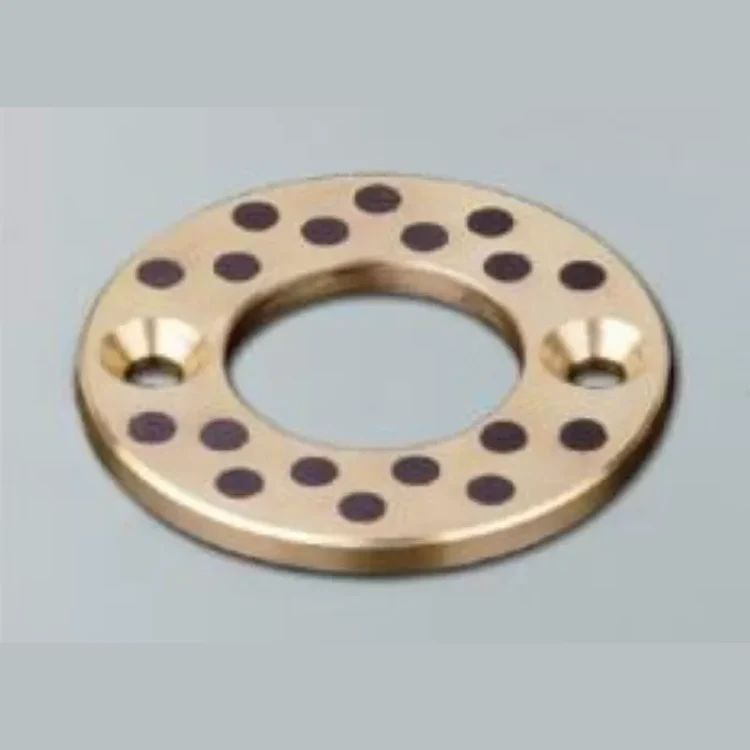

Strengthening Brass With Solid Lubricant Casting Bronze Thrust Washer
OILES 500# Thrust Washer is backed with strengthening brass that has good physical performance and good capability for casting.
OILES 500# Thrust Washer is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, etc.
By made mid-sized holes in order and then insert the solid lubricant into the holes in the bronze bushing to apply the bushings under oil-free conditions.
What’s more, the brass backing has pretty good anti-erosion ability in air, fresh water and seawater. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled.OILES 500# Thrust Washer can be used with rotary, reciprocating shaking motion and movement.
Chemical Compositions
|
Product NO. |
Chemical Compositions |
||||||||
|
TOB 050 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
|
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
|
Physical and Mechanical Performance
|
Performance Index |
Data |
Performance Index |
Data |
|||
|
Density |
g/cm³ |
8.2 |
Hardness |
HB |
≥210 |
|
|
Linear Expansion Coefficient |
10^-5/℃ |
1.6-2.0 |
Flexibility Coefficient |
KN/mm² |
120-140 |
|
|
Heat-conducting Coefficient |
W/(m·k) |
38-55 |
Tensility |
% |
≥12 |
|
|
Tensile Strength |
N/mm² |
≥755 |
Friction |
Oil Lubrication |
μ |
0.03 |
|
Anti-compact Tenacity |
≥KJ/m^3 |
400-500 |
Dry Friction |
0.16 |
||
Application Condition Limits
|
Lubrication Conditions |
Non- Lubrication |
Periodical Lubrication |
Consecutive Lubrication |
|
|
Working Temperature Limits |
℃ |
-40~+300 |
-40~+150 |
-40~+150 |
|
Max. Load pressure |
N/mm² |
100 |
100 |
100 |
|
Max. Linear Velocity |
m/s |
0.50 |
1.00 |
1.50 |
|
Max. PV Value |
N/mm²·m/s |
1.65 |
3.25 |
3.25 |
