Steel Plastic Linear Motion Bearings POM Shield Type

Product Description

Top Bearings is a professional China Steel Plastic Linear Motion Bearings POM Shield Type manufacturers and suppliers, if you are looking for the best Steel Plastic Linear Motion Bearings POM Shield Type with low price, consult us now!

Material:	Steel + Plastic	Precision Standard:	GB
Hardness Test:	100% Pass	Applications:	Precision Machinery, Medical Instrument, Chemical, Printing, Agriculture, Robotic, Automatic Production Line Et.
Shield Type:	POM	Material Incoming:	100% Inspection
High Light:	linear motion ball bearing , flange linear bearing

Linear Motion Bearing Lm3uu, Lm4uu, Lm5uu

The ferrule of linear bearing have two kinds of material: Gcr15 (SUJ2) chrome steel and 9Cr18 (SU440C) stainless steel, retainer have three kinds material: POM engineering plastic, low carbon steel and stainless steel, rubber seal made up of NBR nitrile butadiene rubber, the steel seal have two kinds material: 65Mn spring steel and stainless steel, the ferrule of KH series is made from of carbon it riding of low carbon steel.

The choose of the linear bearing: POM engineering plastic can bear the temperature -20° ~80° Working temperature, steel retainer can bear the temperature -40° ~125° Working temperature.Linear bearing are the most widely-use and economy product among the linear motion track rollers, and they can suit to the cylindrical track.

Precision standard: GB
Shield type: POM
Material incoming: 100% inspection
Hardness test: 100% pass

We can also supply following items:

LM linear bearing:
LM3UU, LM4UU, LM5UU, LM6UU, LM8UU, LM8S, LM10UU, LM12UU, LM13UU,
LM16UU, LM20UU, LM25UU, LM30UU, LM35UU, LM40UU, LM50UU, LM60UU,
LM80UU, LM100UU

LM Open Series linear bearing:
LM10OPUU, LM12OPUU, LM13OPUU, LM16OPUU, LM20OPUU, LM25OPUU,
LM3OOPU, LM35OPUU, LM40OPUU, LM50OPUU, LM60OPUU, LM80OPUU, LM100OPUU

LB linear bearing
LB6UU, LM8UU, LB10UU, LB12UU, LB13UU, LB16UU, LB20UU, LB25UU,
LB3OUU, LB35UU, LB40UU, LB50UU, LB60UU, LB80UU, LB100UU

KH type linear bearing:
KH0622PP, KH0824PP, KH1026PP, KH1228PP, KH1630PP, KH2030PP,
KH2540PP, KH3050PP, KH4060PP, KH5070PP

Steel Cage Linear Bearing:
LM12GA, LM16GA, LM20GA, LM25GA, LM30GA
LM12M, LM16M, LM20M, LM25M, LM30M

SDM series Steel cage linear bearing(As same as Ease SDM series):
SDM16, SDM20, SDM25, SDM30, SDM35, SDM40, SDM50, SDM60, SDM80, SDM100, SDM120,SDM150

Bearing Designation					Major dimensions and tolerance			Major dimensions and tolerance									Basic Load Ratings
LM^UU	LM^AJ	LM^OP	Ball circuit	Weightg	dr (mm)	Tolerance (mm)		D (mm)	Tolerance (mm)	L(mm)	Tolerance (mm)	B (mm)	Tolerance (mm)	W (mm)	D1 (mm)	f (mm)	Cr Dynamic	Cor Static
LM^UU	LM^AJ	LM^OP	Ball circuit	Weightg	dr (mm)	PrecisionJ	PrecisionP	D (mm)	Tolerance (mm)	L(mm)	Tolerance (mm)	B (mm)	Tolerance (mm)	W (mm)	D1 (mm)	f (mm)	N
LM3UU	-	-	4	1.4	3	0-0.005	0-0.008	7	0-0.009	10	0-0.0012	-	-	-	-	-	88	108
LM4UU	-	-	4	1.9	4			8		12		-	-	-	-	-	88	127
LM5UU	-	-	4	4	5			10		15		10.2	0-0.2	1.1	9.6	-	167	206
LM6UU	LM6-AJ	-	4	8	6	0-0.006	0-0.009	12	0-0.011	19	0-0.02	13.5		1.1	11.5	1	206	265
LM8SUU	LM8S-AJ	-	4	11	8			15		17		11.5		1.1	14.3	1	176	216
LM8UU	LM8-AJ	-	4	16	8			15		24		17.5		1.1	14.3	1	274	392
LM10UU	LM10-AJ	LM10OP	4	30	10			19	0-0.013	29		22		1.3	18	1	372	549
LM12UU	LM12-AJ	LM12OP	4	31.5	12			21		30		23		1.3	20	1.5	510	784
LM13UU	LM13-AJ	LM13OP	4	43	13			23		32		23		1.3	22	1.5	510	784
LM16UU	LM16-AJ	LM16OP	5	69	16			28		37		26.5		1.6	27	1.5	774	1180
LM20UU	LM20-AJ	LM20OP	5	87	20	0-0.007	0-0.001	32

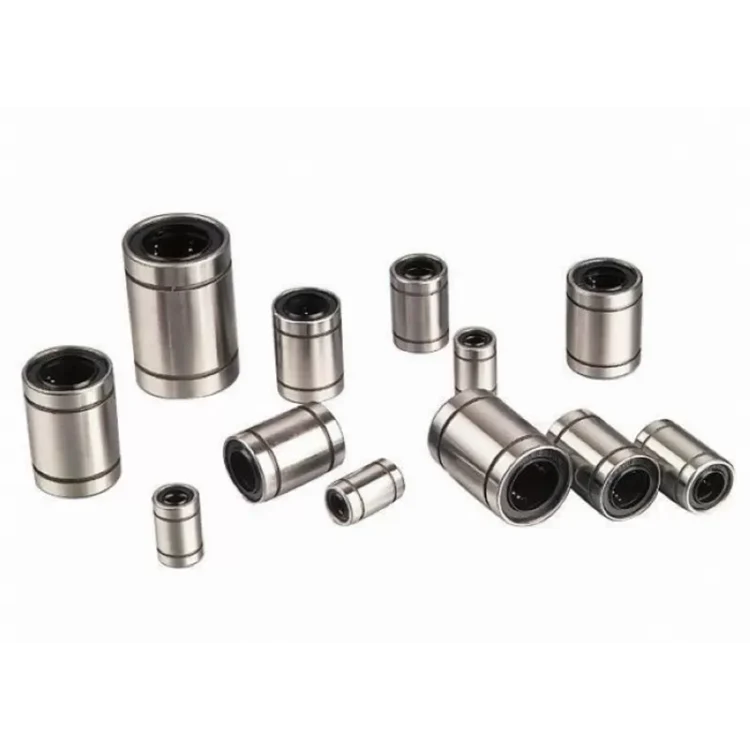

Steel + Plastic Linear Motion Bearings Lm3uu, Lm4uu, Lm5uu , POM Shield type 0
