CuZn31Si H68 Wrapped Bronze Flange Bushing
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality CuZn31Si H68 Wrapped Bronze Flange Bushing looks forward to cooperating with you.
Send Inquiry
Product Description
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality CuZn31Si H68 Wrapped Bronze Flange Bushing looks forward to cooperating with you.
Product Parameter
|
Material: |
CuSn8 Bronze Sliding Bearing |
Types: |
ASB Z90 F Rolled (wrapped) Bronze Bushings With Diamond Indents |
|
Application: |
Agricultural, Building And Engineering Machines, Etc. |
Supply Ability: |
Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
|
Feature: |
Metric Size Flange Size |
||
|
High Light: |
CuZn31Si Wrapped Bronze Bushing, H68 Wrapped Bronze Bushing, 46*42*72.5mm Wrapped Bronze Bushing |
||

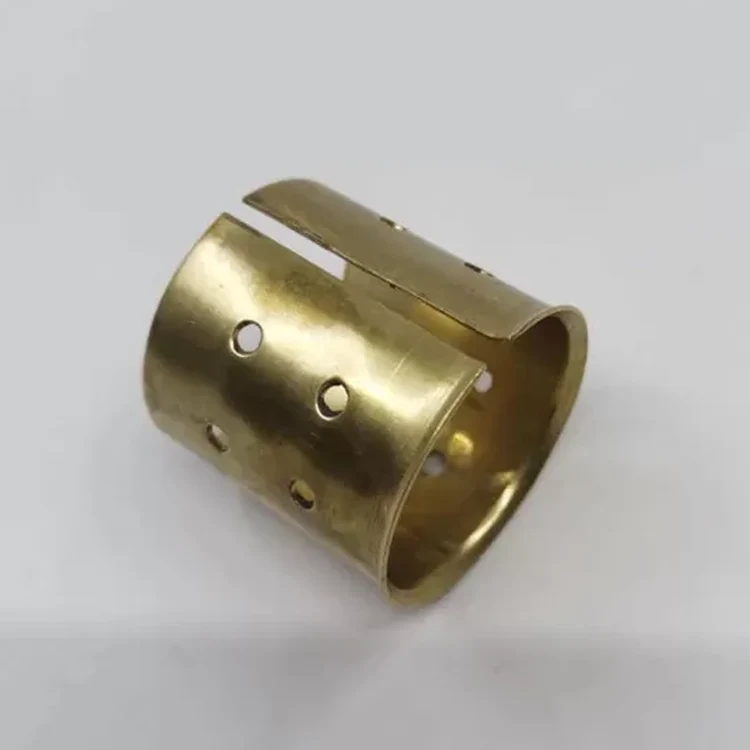

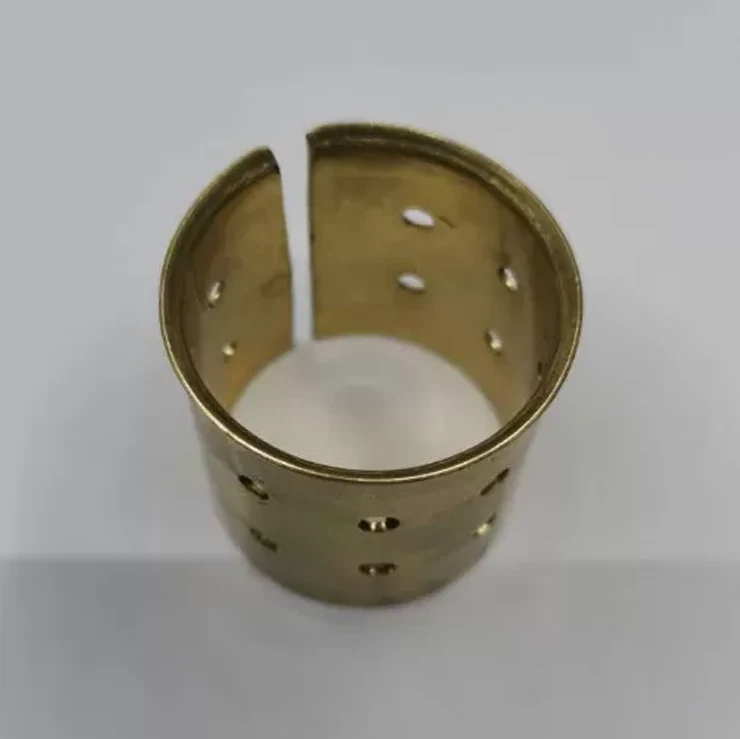

CuZn31Si ( H68 ) Brass Bushing 46*42*72.5mm With Small Flange
Brass Bushing, Manufacturer, Exporter, Cheap Price, Grooves Bushings, 46*42*72.5mm
Cuzn31si Material H62 Or H68 Bearing Bpw Brass Bushing 46x42x72.5 Mm Pure Brass Bush,
Material: CuZn31Si(H68)
Main Application Areas
China Wrapped Brass Bushing
|
Physical and Mechanical Performance
|
||||
|
Performance Index
|
Data
|
|||
|
Max Dynamic Load
|
90N/mm²
|
|||
|
Max Linear Velocity
|
1.5m/s
|
|||
|
Max PV Value
|
1.65N/mm²▪m/s
|
|||
|
Tensile Strength
|
440N/mm²
|
|||
|
Yield Strength
|
230N/mm²
|
|||
|
Hardness
|
80~120HB
|
|||
|
Mating Axis
|
Hardness
|
≥50HRC
|
||
|
Roughness
|
0.4~1.0
|
|||
|
Temperature Limits
|
-40~150℃
|
|||
|
Friction Coefficient
|
0.06~0.15
|
|||
|
Heat Conducting Coefficient
|
71W/m·k
|
|||
Brass Bushing, with material CuZn31Si. It has good anti-fatigue, anti-erosion and anti-abrasion and load capacity. It can be produced by different bronze material and the surface can be produced with other type of oil socket and oil groove in different working condition.
Products used in construction machinery, automotive brake system machine tool industry.
Enterprise technology relying on Research Institute and colleges and universities and colleges and universities and colleges and universities, constantly develop brass wrapped bushings products adapted to different working conditions and various mechanical fields. The product performance has reached the level of foreign products of the same kind.
| Material | FB090 | Bronze(CuSn8Pb/ CuSn6.5Pb) |
| FB091 | Bronze(CuZn31Si) | |
| FB092 | Bronze(CuSn8Pb/ CuSn6.5Pb) | |
| FB094 | Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings | |
| FB090G | Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite | |
| Load capacity | 100N/mm2 | |
| Speed limit | 2m/s | |
| PV value limit | 2.8N/mm2.m/s | |
| Tensile Strength | 460N/mm2 | |
| Yeild Strength | 260N/mm2 | |
| Hardness | 90~150HB | |
| Mating axis required | Hardness | >=50HRC |
| Roughness | Ra=0.4~1.0 | |
| Friction coef | 0.05~0.2 | |
| Working temperature max. | 150°C |
the Brass Wrapped Bushing bushing is made of copper alloy CuZn31Si that is of higher density with its surface punched with oil sockets or grooves, which depends on the customer's requirements. This type of bushing has better load capacity, anti-erosion, and anti-abrasion capacity.
Material: CuZn31Si
Hardness: HB90~150
Temperature limit: -100℃~200℃
Load capacity: 90N/mm2
Speed limit: 2m/s
Material Structure
Material: CuZn31Si1.
Characteristics
High load capacity, good wear-resistance.
Good stability under load, particularly suitable for oscillating bearing.
Grease depots for long-term lubrication.
Availability
Standard cylindrical bushings are available.
Special designs are produced based on your design.
Application
This type oilless bronze bushing is widely used in construction machinery, machine tooling etc.
| The use of parameters | |||||
| Parameters | 090 Bronze Wrapped Bushing | 091 Copper Wrapped BushingBronze Wrapped Bushing | 092 Bronze Wrapped Bushing | 094 Bronze Wrapped Bushing | 09G Bronze Wrapped Bushing |
|
|
|
|
|
|
| Density | |||||
| 8.9g/cm³ | 8.9g/cm³ | 8.4g/cm³ | 8.9g/cm³ | 8.9g/cm³ | 8.3g/cm³ |
| Pressure resistance strength | 470N/mm² | 440N/mm² | 470N/mm² | 470N/mm² | 470N/mm² |
| Coefficient of heat | 60W/m.k | 71W/m.k | 60W/m.k | 60W/m.k | 58W/m.k |
| Linear expansion coefficient | 18.5×10-6/K | 19.2×10-6/K | 18.5×10-6/K | 18.5×10-6/K | 18.5×10-6/K |
| Hardness | 90~120 HB | 80~110 HB | 90~120 HB | 90~120 HB | 90~120 HB |
| Elongation | 55% | 30% | 55% | 55% | 55% |
| Alloy material | CuSn8P | CuZn31Si | CuSn8P | CuSn8P | CuSn8P |
| Other material | CuSn6.5P | CuSn6.5P | CuSn6.5P |
CuSn6.5P |
