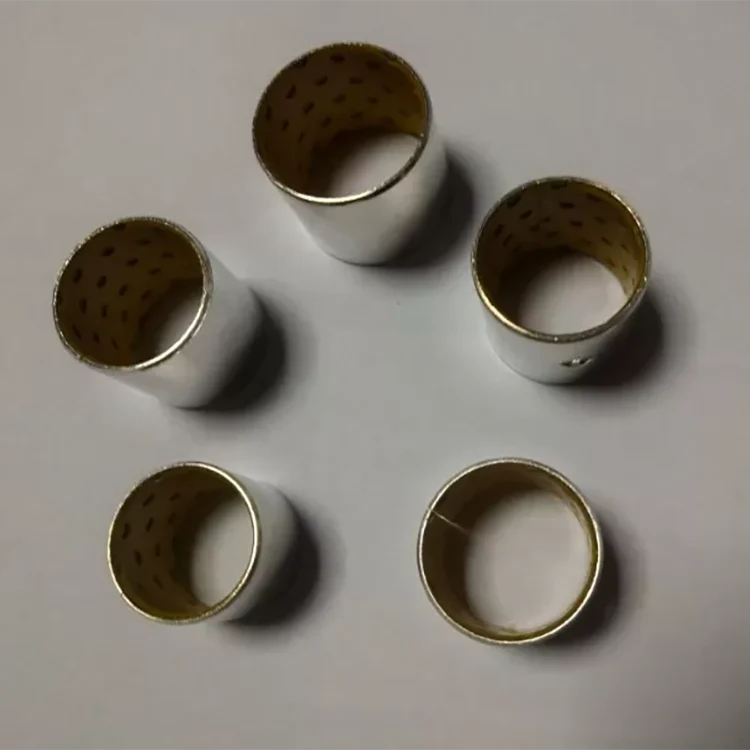

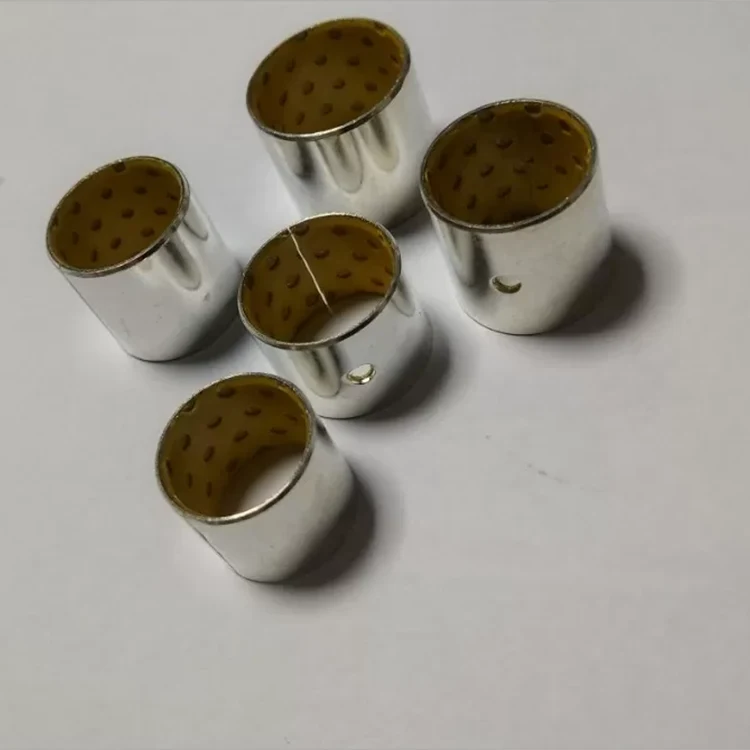

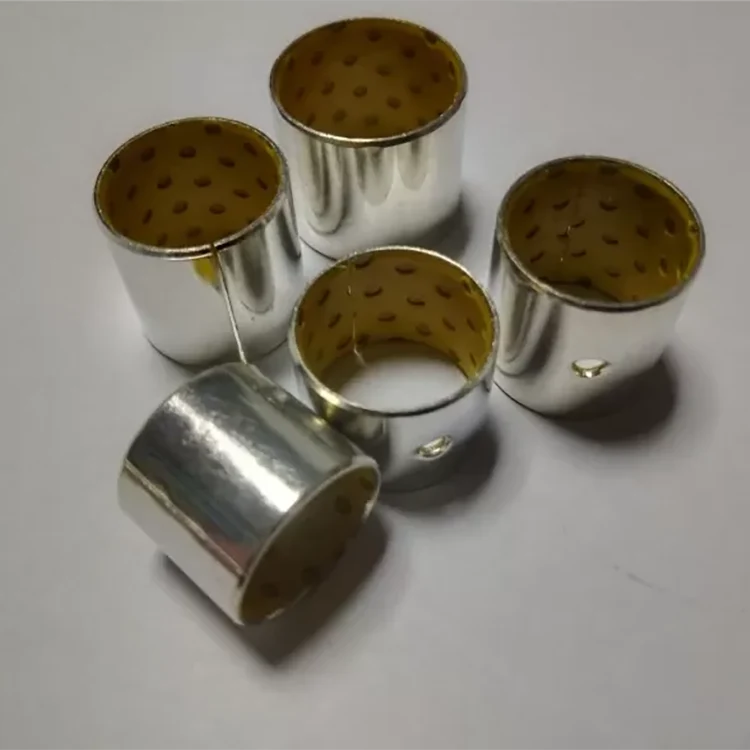

Sankyo DIN European Standard Porous Polymer Bushings

Top Bearings is a leading China Sankyo DIN European Standard Porous Polymer Bushings manufacturers, suppliers and exporter.

Product Parameter

Material:	Low-Carbon Steel + Porous Bronze + Yellow POM	Types:	Wrapped Bushes, Thrust Washer
Application:	Forklift, Trucks & Other Platforms.	Certification:	ISO 3547 DIN 1494 Assembly Standard Tolerance
Packaging Details:	Export Carton; Wooden Case ; Wood Pallet.
High Light:	Porous Polymer Plain Bushings, Sankyo Polymer Plain Bushings, DIN PTFE Sleeve Bearings



OVERVIEW

Line of business
Various oilless bearings, bearings for water gates, bearings PTFE bushings and bearing plates for structures such as bridges, other special oilless machinery such as mechanical, chemical or electronic equipment.
Our TOP BEARINGS range of PTFE lined wrapped bearings is suitable for dry running, low friction, low wear applications. These wrapped bearings have excellent sliding characteristics forming a transfer film that can protect the mating metal surface.
We are able to offer PTFE lined wrapped bearings in metric plain, imperial plain, metric flanged, metric washers, imperial washers, metric strip and imperial strip. Special sizes can be produced to customer requirements,

Quality control:	Integrated with well-running quality control management system.
OEM Service	Available
Standard of Products	Also availbale like: NAAMS, DIN, EUROPEAN STANDARD, JIS, CUSOMIZE. Can interchange with: WF-750, Fibro Oilless Guide Elements, Sankyo Oilless.Standard Bearing & Bushings

Cylindrical bushes, flanged bushes, thrust washers, flat strip material, half bearing, wear plate.The U.S. 's GGB, sankyo oilless and DAIDO are the world's top three makers of self-lubricated bearings, with strong positions in aerospace, automotive and transportation. WE also established itself as an industry leader in self-lubricating bearings exported from China

Purpose of business	Design, manufacture, supply and sales of: . Various oilless bearings . Solid bronze bearing . Wear plate . Thrust washer . Sliding Part for Die Mold . Guide Bushing . Oilless guide components.
Line of business	Various oilless bearings, bearings for water gates, bearings and bearing plates for structures such as bridges, other special oilless machinery such as mechanical, chemical or electronic equipment.
Quality control:	Integrated with well-running quality control management system.
OEM Service	Available
Standard of Products	Also available like: NAAMS, DIN, EUROPEAN STANDARD, JIS, CUSOMIZE. Can interchange with: WF-750, Fibro Oilless Guide Elements, Sankyo Oilless

Metal base self-lubricating bearing

Taking high-strength copper alloy as the base material, holes are distributed on the working face in proportion according to the working conditions and filled with solid lubrication column. High-strength copper alloy provides high bearing capacity while solid lubrication column can form lower friction pair.

Features

Self-lubricatingbushings will support rotary, linear and oscillating motion.TOP-20 material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material.


Dx bushing size chart

	Di (mm)	Do (mm)	B (mm)	bearing	shaft	The largest diameter (mm)	Minimum diameter (mm)	The maximum clearance (mm)	The minimum clearance (mm)
0203DU	2	3.5	3	H6	h6	2.048	2	0.054	0
0205DU	2	3.5	5	H6	h6	2.048	2	0.054	0
0303DU	3	4.5	3	H6	h6	3.048	3	0.054	0
0305DU	3	4.5	5	H6	h6	3.048	3	0.054	0
0306DU	3	4.5	6	H6	h6	3.048	3	0.054	0
0403DU	4	5.5	3	H6	h6	4.048	4	0.056	0
0404DU	4	5.5	4	H6	h6	4.048	4	0.056	0
0406DU	4	5.5	6	H6	h6	4.048	4	0.056	0
0410DU	4	5.5	10	H6	h6	4.048	4	0.056	0
0505DU	5	7	5	H7	f7	5.055	4.99	0.077	0
0508DU	5	7	8	H7	f7	5.055	4.99	0.077	0
0510DU	5	7	10	H7	f7	5.055	4.99	0.077	0
0604DU	6	8	4	H7	f7	6.055	5.99	0.077	0
0606DU	6	8	6	H7	f7	6.055	5.99	0.077	0
0608DU	6	8	8	H7	f7	6.055	5.99	0.077	0
0610DU	6	8	10	H7	f7	6.055	5.99	0.077	0
0705DU	7	9	5	H7	f7	7.055	6.99	0.083	0.003
0710DU	7	9	10	H7	f7	7.055	6.99	0.083	0.003
0806DU	8	10	6	H7	f7	8.055	7.99	0.083	0.003
0808DU	8	10	8	H7	f7	8.055	7.99	0.083	0.003
0810DU	8	10	10	H7	f7	8.055	7.99	0.083	0.003
0812DU	8	10	12	H7	f7	8.055	7.99	0.083	0.003
1006DU	10	12	6	H7	f7	10.058	9.99	0.086	0.003
1008DU	10	12	8	H7	f7	10.058	9.99	0.086	0.003
1010DU	10	12	10	H7	f7	10.058	9.99	0.086	0.003
1012DU	10	12	12	H7	f7	10.058	9.99	0.086	0.003
1015DU	10	12	15	H7	f7	10.058	9.99	0.086	0.003
1020DU	10	12	20	H7	f7	10.058	9.99	0.086	0.003
1208DU	12	14	8	H7	f7	12.058	11.99	0.092	0.006
1210DU	12	14	10	H7	f7	12.058	11.99	0.092	0.006
1212DU	12	14	12	H7	f7	12.058	11.99	0.092	0.006
1215DU	12	14	15	H7	f7	12.058	11.99	0.092	0.006
1220DU	12	14	20	H7	f7	12.058	11.99	0.092	0.006
1225DU	12	14	25	H7	f7	12.058	11.99	0.092	0.006
1310DU	13	15	10	H7	f7	13.058	12.99	0.092	0.006
1320DU	13	15	20	H7	f7	13.058	12.99	0.092	0.006
1405DU	14	16	5	H7	f7	14.058	13.99	0.092	0.006
1410DU	14	16	10	H7	f7	14.058	13.99	0.092	0.006
1412DU	14	16	12	H7	f7	14.058	13.99	0.092	0.006
1415DU	14	16	15	H7	f7	14.058	13.99	0.092	0.006
1420DU	14	16	20	H7	f7	14.058	13.99	0.092	0.006
1425DU	14	16	25	H7	f7	14.058	13.99	0.092	0.006
1510DU	15	17	10	H7	f7	15.058	14.99	0.092	0.006
1512DU	15	17	12	H7	f7	15.058	14.99	0.092	0.006
1515DU	15	17	15	H7	f7	15.058	14.99	0.092	0.006
1520DU	15	17	20	H7	f7	15.058	14.99	0.092	0.006
1525DU	15	17	25	H7	f7	15.058	14.99	0.092	0.006
1610DU	16	18	10	H7	f7	16.058	15.99	0.092	0.006
1612DU	16	18	12	H7	f7	16.058	15.99	0.092	0.006
1615DU	16	18	15	H7	f7	16.058	15.99	0.092	0.006
1620DU	16	18	20	H7	f7	16.058	15.99	0.092	0.006
1625DU	16	18	25	H7	f7	16.058	15.99	0.092	0.006
1720DU	17	19	20	H7	f7	17.061	16.99	0.095	0.006
1810DU	18	20	10	H7	f7	18.061	17.99	0.095	0.006
1815DU	18	20	15	H7	f7	18.061	17.99	0.095	0.006
1820DU	18	20	20	H7	f7	18.061	17.99	0.095	0.006
1825DU	18	20	25	H7	f7	18.061	17.99	0.095	0.006
2010DU	20	23	10	H7	f7	20.071	19.99	0.112	0.01
2015DU	20	23	15	H7	f7	20.071	19.99	0.112	0.01
2020DU	20	23	20	H7	f7	20.071	19.99	0.112	0.01
2025DU	20	23	25	H7	f7	20.071	19.99	0.112	0.01
2030DU	20	23	30	H7	f7	20.071	19.99	0.112	0.01
2215DU	22	25	15	H7	f7	22.071	21.99	0.112	0.01
2220DU	22	25	20	H7	f7	22.071	21.99	0.112	0.01
2225DU	22	25	25	H7	f7	22.071	21.99	0.112	0.01
2230DU	22	25	30	H7	f7	22.071	21.99	0.112	0.01
2415DU	24	27	15	H7	f7	24.071	23.99	0.112	0.01
2420DU	24	27	20	H7	f7	24.071	23.99	0.112	0.01
2425DU	24	27	25	H7	f7	24.071	23.99	0.112	0.01
2430DU	24	27	30	H7	f7	24.071	23.99	0.112	0.01
2515DU	25	28	15	H7	f7	25.071	24.99	0.112	0.01
2520DU	25	28	20	H7	f7	25.071	24.99	0.112	0.01
2525DU	25	28	25	H7	f7	25.071	24.99	0.112	0.01
2530DU	25	28	30	H7	f7	25.071	24.99	0.112	0.01
2550DU	25	28	50	H7	f7	25.071	24.99	0.112	0.01
2815DU	28	32	15	H7	f7	28.085	27.99	0.126	0.01
2820DU	28	32	20	H7	f7	28.085	27.99	0.126	0.01
2825DU	28	32	25	H7	f7	28.085	27.99	0.126	0.01
2830DU	28	32	30	H7	f7	28.085	27.99	0.126	0.01
3010DU	30	34	10	H7	f7	30.085	29.99	0.126	0.01
3015DU	30	34	15	H7	f7	30.085	29.99	0.126	0.01
3020DU	30	34	20	H7	f7	30.085	29.99	0.126	0.01
3025DU	30	34	25	H7	f7	30.085	29.99	0.126	0.01
3030DU	30	34	30	H7	f7	30.085	29.99	0.126	0.01
3040DU	30	34	40	H7	f7	30.085	29.99	0.126	0.01
3220DU	32	36	20	H7	f7	32.085	31.99	0.135	0.015
3230DU	32	36	30	H7	f7	32.085	31.99	0.135	0.015
3240DU	32	36	40	H7	f7	32.085	31.99	0.135	0.015
3520DU	35	39	20	H7	f7	35.085	34.99	0.135	0.015
3530DU	35	39	30	H7	f7	35.085	34.99	0.135	0.015
3535DU	35	39	35	H7	f7	35.085	34.99	0.135	0.015
3540DU	35	39	40	H7	f7	35.085	34.99	0.135	0.015
3550DU	35	39	50	H7	f7	35.085	34.99	0.135	0.015
3720DU	37	41	20	H7	f7	37.085	36.99	0.135	0.015
4020DU	40	44	20	H7	f7	40.085	39.99	0.135	0.015
4030DU	40	44	30	H7	f7	40.085	39.99	0.135	0.015
4040DU	40	44	40	H7	f7	40.085	39.99	0.135	0.015
4050DU	40	44	50	H7	f7	40.085	39.99	0.135	0.015
4520DU	45	50	20	H7	f7	45.105	44.99	0.155	0.015
4530DU	45	50	30	H7	f7	45.105	44.99	0.155	0.015
4540DU	45	50	40	H7	f7	45.105	44.99	0.155	0.015
4545DU	45	50	45	H7	f7	45.105	44.99	0.155	0.015
4550DU	45	50	50	H7	f7	45.105	44.99	0.155	0.015
5020DU	50	55	20	H7	f7	50.11	49.99	0.16	0.015
