Product Parameter

Material:	Low-Carbon Steel + Porous Bronze + Yellow POM	Types:	Wrapped Bushes, Thrust Washer
Application:	Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc.	Hardness:	>270 HB
Working Temperature:	-40~+120℃	Max. PV Value:	Grease 2.8 N/mm²·m/s, Oil 50 N/mm²·m/s
High Light:	boundary lubrication bearing, pom bearing



Self-lubricating Bearing Product Category : SF-2 Boundary Lubricating Bearing

Product Category:SF-2 Boundary Lubricating Bearing

Name:SF-2 Boundary Lubricating Bearing

Detail:

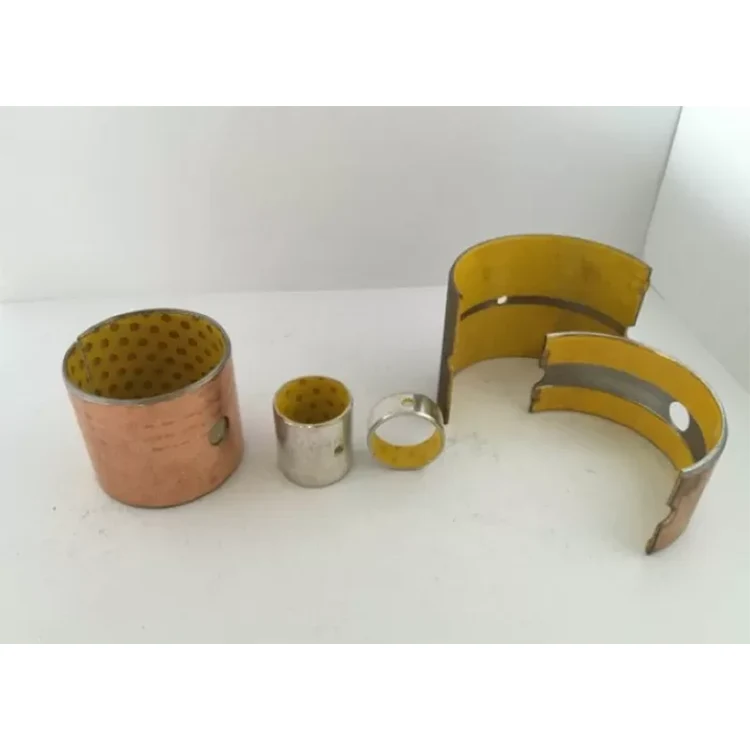

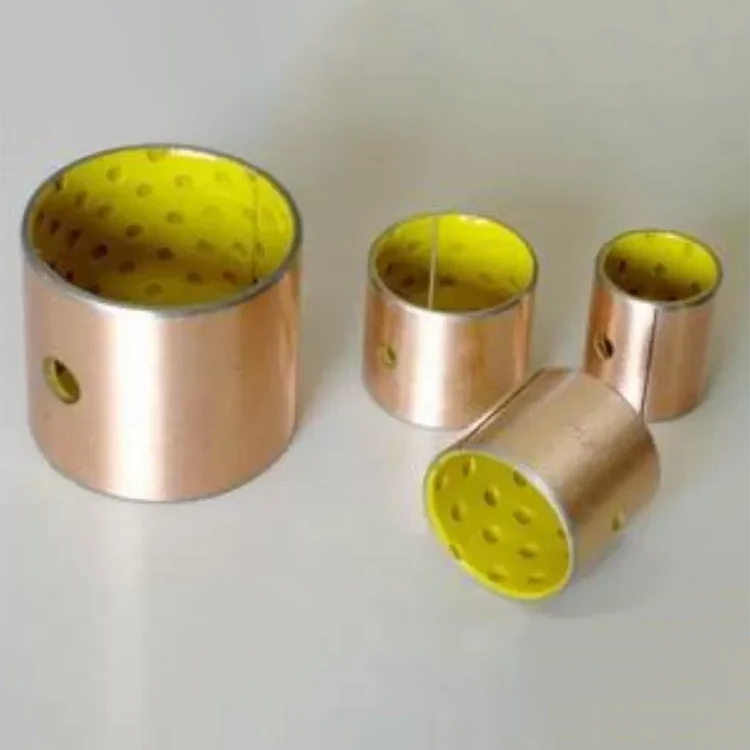

It is a rolling sliding bearing taking steel plate as matrix, sintered spherical bronze powder in the middle, and modified POM rolled and oil storage pits on the surface
Can be manufactured to customer’s requirements.

Application Features

1. Good bearing performance and wear resistance.
2. It is suitable for rotation, swaying in high load and low speed, and frequent stop-start motion as well.
3. It can work for long time in the condition of boundary lubrication; longer service life can be achieved under regular oiling maintenance.
4. It is machinable for the POM on the surface when the bearing is fixed, to achieve better matching accuracy.
5. It is mainly applied in automotive chassis, metallurgical, mining, water conservancy, and construction, and agricultural machinery, steel rolling equipment as well.
6. Transfer film formed on operation to protect the shaft from getting stuck.
7. Better lubricating effect for sufficient lubricants on oil storage pits for standard products.
8. It is lead-free to be widely applied in the situation lead free required

Technical Parameter

Max Bearing capacity	140N/mm2
Temperature Range	-40oC~+130oC
Max Sliding Speed	2.5m/s
Friction Coefficient	0.05-0.25
Max PV Value for dry friction	2.8N/mm2m/s
Max PV Value for oil lubrication	22N/mm2m/s
