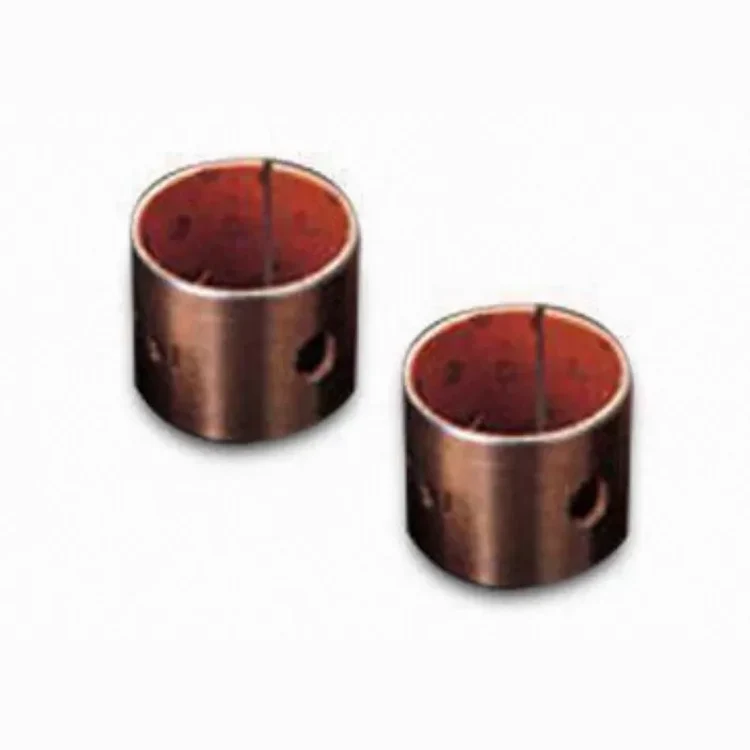

Sliding Bearing DX Bushes For Mining Machinery SF-2

Product Description

Top Bearings is a professional China Sliding Bearing DX Bushes For Mining Machinery SF-2 manufacturers and suppliers, if you are looking for the best Sliding Bearing DX Bushes For Mining Machinery SF-2 with low price, consult us now!

Product Parameter

Material:	Low-Carbon Steel + Porous Bronze + Orange POM	Types:	Wrapped Bushes, Thrust Washer
Application:	Vehicle Chassis, Forming Machine Tools, Steel Metallurgical Machinery, Mineral Mountain Machinery, Hydraulic Industry And Rolling Steel Industry, Etc.	Roughness:	Ra=0.4~1.25
Working Temperature:	-40~+120℃	Heat-conducting Coefficient:	52 W/(m*k)
High Light:	pom bearing, sleeve bearing bushing

Boundary - Lubrication Oilless Sliding Bearing DX Bushes for Mining Machinery (SF-2)

Boundary-Lubrication oilless sliding bearing to steel as matrix, sintered bronze spherical powder as the middle layer, the surface of rolling modified Poly oxymethylene (POM) and has storage pit.

Plastic surface of the product thickness 0.5mm, has good wear resistance, in the less oil or oil under the conditions of space off to work correctly. It was adapted to work under conditions of ambient temperature and low-speed heavy-duty venue to replace the traditional copper sets, both to reduce the cost of extending the service life. Product has been widely used in auto chassis, forging machine, metallurgical and mining machinery, engineering machinery, hydropower, steel rolling industry and other fields.

Static 250N/mm2
Dynamic 140N/mm2
Oscillating 60N/mm2

PV Dry 2.8N/mm2. M/s
PV limit Oil 22N/mm2. M/s
Temp. Limit -40+130

Friction Coeff. 0.050.25μ
speed limit 0.25m/s
Thermal conductivity 2.03Kcal/M. Br. C

TOB-2B marginal lubricating bearings

Introduction
It is made of high quality low-carbon steel, sintered porous bronze as its interlayer, with the compound of POM as its surface. And has good load capacity & wear-resistant. It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc. It is without lead, can meet the requirements of environment protection.

Metallurgical structure

1.POM 0.3~0.5mm
2.Porous bronze 0.2~0.3mm
3.Steel backing 0.4~2.2mm
4.Copper plating 0.008mm

Tech. Data
Max.Load	Static	250N/m	Temp.limit		-150℃~＋250℃
	Very low speed	140N/m	Max.speed	Pre-lubricated	2m/s
	Rotating oscillating	60N/m		Oiling Grease continuous	＞2m/s
Max.PV		3.6N/mm/s	Thermal conductivity		4W(mK)1
Coefficient of thermal expansion		11106K1	Friction coefficient		0.05~0.20

Typical Application

Recommended for applications involving intermittent operation or boundary lubrication...
Automotive: suspension joints, kingpin assemblies and stub axles of tucks, automobile driving joint hinges, steering and other linkages, articulation joints, rear chassis hinges, fairleader rollers...
Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in multigame presses...
Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters...
Be especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.

Boundary - Lubrication Oilless Sliding Bearing DX Bushes For Mining Machinery ( SF-2 ) 0
