Spherical Plain Rod End Bearing Maintenance Free Type

Product Description

Top Bearings is a professional leader China Spherical Plain Rod End Bearing Maintenance Free Type manufacturers with high quality and reasonable price. Welcome to contact us.

Product Parameter

Material:	Chrome Steel, Stainless Steel And Carbon Steel	Surface Treatment:	Zinc-plated, Chrome-plated, Nickel And Copper-plated
Precision Rating:	ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4	Cage:	Steel, Brass, Nylon
Clearance:	C0, C1, C2, C3, C4, C5 Etc.	Production Range (d):	5 To 35mm In Metric Or Inch Sizes Both
High Light:	spherical bearing rod ends, swivel rod ends

Spherical Plain Bearings Rod End Bearing Maintenance-free Type

Rod end is composed of a standard spherical plain bearing and a rod body,

it’s available with left or right-hand female (internal) or male (external) threads.

BRS maintenance-free rod ends have special sliding layers of modern dry sliding

materials characterised by low friction. They are particular suitable for applications

where long service lives are required without maintenance.

Specifications & Features

1. Materials: chrome steel, stainless steel and carbon steel

2. Surface treatment: zinc-plated, chrome-plated, nickel and copper-plated

3. Production range (d): 5 to 35mm in metric or inch sizes both

4. Corrosion-resistant, self-lubricating and high load capacity

Applications:

Engineering hydraulic cylinder, forming machine tools, engineering machinery,

automation equipment, automobile shock absorber, water conservancy machinery industry,

textile machinery, military machinery, etc.

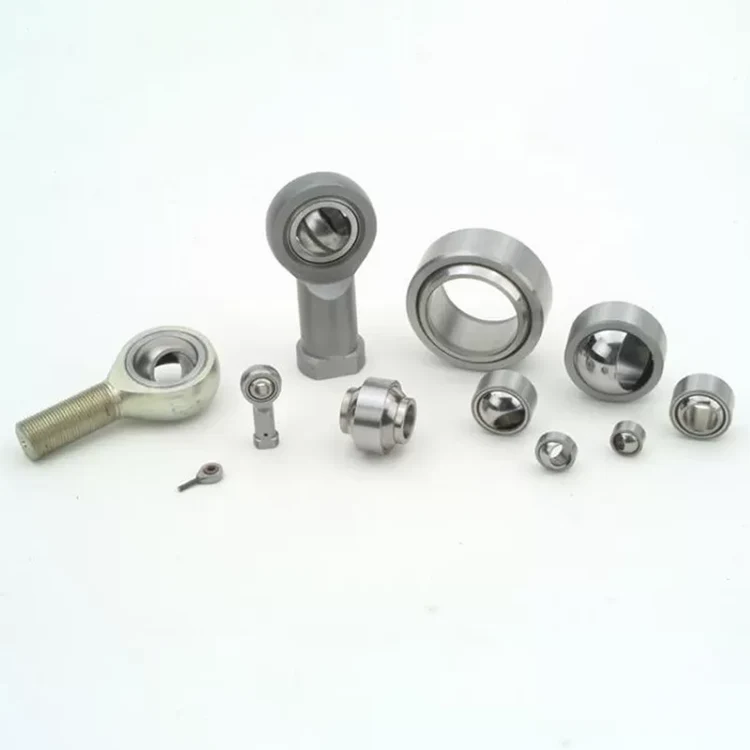

Spherical Plain Bearings Rod End Bearing Maintenance Free Type 0

Model	Dimension (mm)														Loading Rating (KN)		Weight (kg)
Model	d	d2	B	C1	W	d3	d4	d5	L1	L2	L	L3	d1	α° ≈	Dynamic	Static	Weight (kg)
SI5T/K	5	18	8	6	9	M5X0.8	9	11	27	10	36	4.5	7.7	13	6	7.5	0.018
SI6T/K	6	20	9	6.75	11	M6X1	10	13	30	12	40	5	8.9	13	7.2	9.3	0.027
SI8T/K	8	24	12	9	13	M8X1.25	12.5	16	36	16	48	5	10.4	14	11.6	16.7	0.046
SI10T/K	10	28	14	10.5	17	M10X1.5	15	19	43	20	57	6.5	12.9	13	14.5	23.4	0.076
SI12T/K	12	32	16	12	19	M12X1.75	17.5	22	50	22	66	6.5	15.4	13	17	32	0.115
SI14T/K	14	36	19	13.5	22	M14X2	20	25	57	25	75	8	16.8	16	24	41.9	0.170
SI16T/K	16	42	21	15	22	M16X2	22	27	64	28	85	8	19.3	15	28.5	52.7	0.230
SI18T/K	18	46	23	16.5	27	M18X5	25	31	71	32	94	10	21.8	15	35	63.8	0.320
SI20T/K	20	50	25	18	32	M20X1.5	27.5	34	77	33	102	10	24.3	14	40	78.1	0.415
SI22T/K	22	54	28	20	32	M22X5	30	37	84	37	111	10	25.8	15	52	97.2	0.540
SI25T/K	25	60	31	22	36	M24X2	33.5	42	94	42	124	12	29.6	15	60	122.1	0.750
SI30T/K	30	70	37	25	41	M30X2	40	51	110	51	145	15	34.8	15	81	168.4	1.130
SI35T/K	35	80	43	28	50	M36X2	46	56	125	56	165	15	37.7	17	100	205.7	1.600

Model	Dimension (mm)											Loading Rating (KN)		Weight (kg)
Model	d	d2	B	C1	d3	h	L1	L2	L	d1	α° ≈	Dynamic	Static	Weight (kg)
SA5T/K	5	18	8	6	M5X0.8	33	33	19	42	7.7	13	4	7.5	0.013
SA6T/K	6	20	9	6.75	M6X1	36	36	22	46	8.9	13	4.4	9.3	0.020
SA8T/K	8	24	12	9	M8X1.25	42	42	25	54	10.4	14	8	16.7	0.033
SA10T/K	10	28	14	10.5	M10X1.5	48	48	29	62	12.9	13	12.9	23.4	0.056
SA12T/K	12	32	16	12	M12X1.75	54	54	33	70	15.4	13	17	32	0.087
SA14T/K	14	36	19	13.5	M14X2	60	60	38	78	16.8	16	24	41.9	0.129
SA16T/K	16	42	21	15	M16X2	66	66	40	87	19.3	15	28.5	52.7	0.189
SA18T/K	18	46	23	16.5	M18X1.5	72	72	44	95	21.8	15	35	63.8	0.267
SA20T/K	20	50	25	18	M20X1.5	78	78	47	103	24.3	14	40	78.1	0.348
SA22T/K	22	54	28	20	M22X1.5	84	84	51	111	25.8	15	52	97.2	0.443
SA25T/K	25	60	31	22	M24X2	94	94	58	124	29.6	15	60	122.1	0.600
SA30T/K	30	70	37	25	M30X2	110	110	71	145	34.8	15	81	168.4	1.030
SA35T/K	35	80	43	28	M36X2	125	125	77	165	37.7	17	100	205.7	1.600

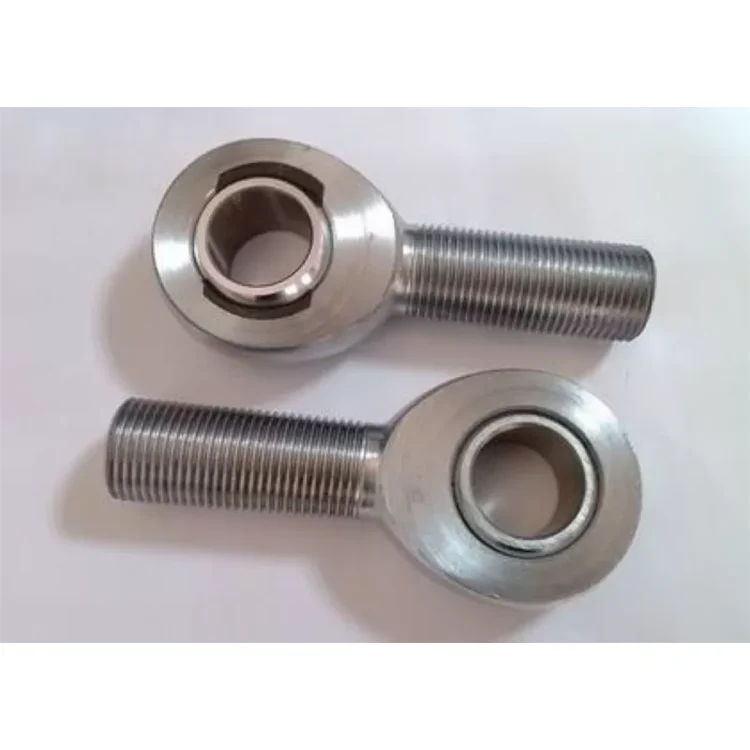

Spherical Plain Bearings Rod End Bearing Maintenance Free Type 1
