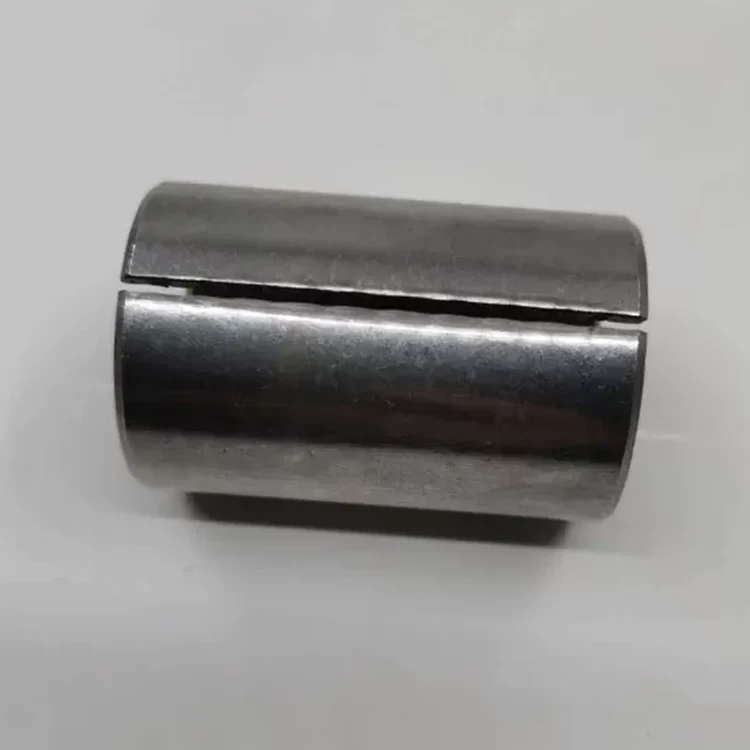

Thin Walled Track Roller Flange Bimetal Bearing
Top Bearings is a professional China Thin Walled Track Roller Flange Bimetal Bearing manufacturers and suppliers, if you are looking for the best Thin Walled Track Roller Flange Bimetal Bearing with low price, consult us now!
Send Inquiry
Product Description
Top Bearings is a professional China Thin Walled Track Roller Flange Bimetal Bearing manufacturers and suppliers, if you are looking for the best Thin Walled Track Roller Flange Bimetal Bearing with low price, consult us now!
Product Parameter
|
Material: |
Bimetal ,Bronze/Steel Bushing,is Available With Stainless Steel, Carbon Steel Or Bronze Backing |
Thin Walled Bearing,Low-maintenance And Maintenance-free Plain Bearings: |
Thin Walled Bearing,Low-maintenance And Maintenance-free Plain Bearings |
|
Application: |
Agriculture Machinery, Agricultural, Mechanical Handling And Lifting Applications |
Size: |
IMPERIAL & METRIC SIZES,Standard Size Available |
|
Type: |
Cylindrical Bushes Thrust Washers, Strips Or Special Designs |
Packing: |
Export & Import Bimetal Bushings International Carton Standard |
|
Certification: |
Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4... |
||
|
High Light: |
Flange Bimetal Bearing Bushes , Bronze Bimetal Bearing Bushes , Steel Bimetal Bearing Bushes
|
||
Bimetal bearing applications
Bimetal Bushings, Bimetal Bushings Suppliers, Professional Manufacture for Bimetal Bearings,Track roller bushing flange bimetal bushing , steel bronze bimetal bush, sleeve bi metal bushings.agricultural vehicles excavator bucket track roller excavator undercarriage parts jcb repuestos bushing.Get a Quote Today.

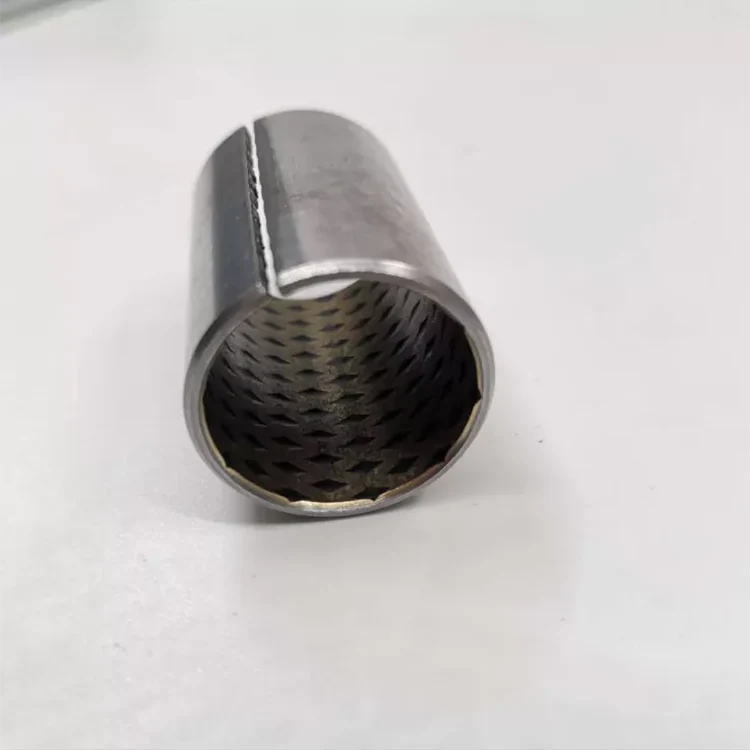

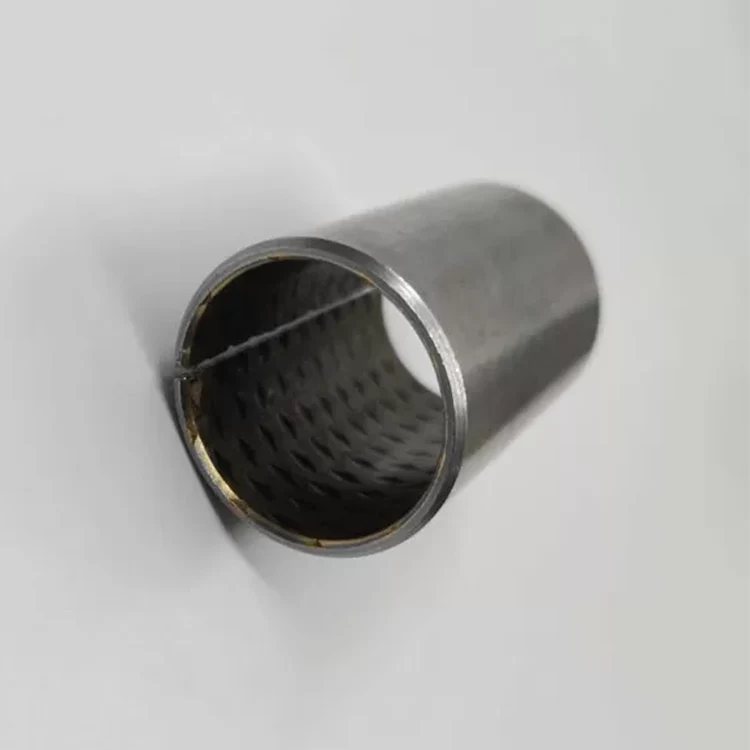

It is made of high quality low-carbon steel, sintered copper alloy of CuPbSn10, the alloy surface is rolled to diamond oil grooves. The special lubricant is embedded in the grooves. It has good lubricating and corrosion resistance property, it can work in the condition of little of oil or none of oil. It is particularly applied to high temperature, water solution and the occasions where cannot be added oil.
Material organization
1. Sintered copper alloy layer CuSn10Pb10: it has good wear resistance and excellent bearing capacity, low friction factor and good bite resistance.
2. Carbon steel substrate: provide bearing capacity and good heat transfer.
|
Pb(%) |
Fe(%) |
Ni(%) |
Zn(%) |
Cu(%) |
|
8.0-11.0 |
≦0.25 |
≦1.5 |
≦2.0 |
78.0-87.0 |
Tech. Data
|
Max.Load |
Static |
250N/mm² |
Alloy Hardness |
HB 60-100
|
|
|
140N/mm² |
|||
|
Temp |
-40℃~+250℃
|
|||
|
Coefficient of friction |
0.05~0.12
|
|||
|
Max.Speed |
Max.Speed |
2.5m/s |
Thermal conductivity |
60W(m*k)-1
|
|
Max.PV |
Max.PV |
2.8N/mm²*m/s |
||
|
Shear strength |
Shear strength |
170N/mm² |
||
|
Coef.of yhermal exoansion |
14*10-6K-1
|
Type:-Flanged
-Solid Bronze
-Welded Joint
-Split Joint
-Clench Lock
-Sintered / Powder Metal
-Graphite Impregnated
|
Type |
Spec |
Type |
Spec |
||
|
BIMETAL BUSHINGS |
1010 |
12×10×10 |
BIMETAL BUSHINGS |
2830 |
32×28×30 |
|
BIMETAL BUSHINGS |
1015 |
12×10×15 |
BIMETAL BUSHINGS |
2840 |
32×28×40 |
|
BIMETAL BUSHINGS |
1020 |
12×10×20 |
BIMETAL BUSHINGS |
3015 |
34×30×15 |
|
BIMETAL BUSHINGS |
1210 |
14×12×10 |
BIMETAL BUSHINGS |
3020 |
34×30×20 |
|
BIMETAL BUSHINGS |
1215 |
14×12×15 |
BIMETAL BUSHINGS |
3025 |
34×30×25 |
|
BIMETAL BUSHINGS |
1220 |
14×12×20 |
BIMETAL BUSHINGS |
3030 |
34×30×30 |
|
BIMETAL BUSHINGS |
1410 |
16×14×10 |
BIMETAL BUSHINGS |
3040 |
34×30×40 |
|
BIMETAL BUSHINGS |
1415 |
16×14×15 |
BIMETAL BUSHINGS |
3215 |
36×32×15 |
|
BIMETAL BUSHINGS |
1420 |
16×14×20 |
BIMETAL BUSHINGS |
3220 |
36×32×20 |
|
BIMETAL BUSHINGS |
1510 |
17×15×10 |
BIMETAL BUSHINGS |
3225 |
36×32×25 |
|
BIMETAL BUSHINGS |
1515 |
17×15×15 |
BIMETAL BUSHINGS |
3230 |
36×32×30 |
|
BIMETAL BUSHINGS |
1520 |
17×15×20 |
BIMETAL BUSHINGS |
3240 |
36×32×40 |
|
BIMETAL BUSHINGS |
1610 |
18×16×10 |
BIMETAL BUSHINGS |
3520 |
39×35×20 |
|
BIMETAL BUSHINGS |
1615 |
18×16×15 |
BIMETAL BUSHINGS |
3525 |
39×35×25 |
|
BIMETAL BUSHINGS |
1620 |
18×16×20 |
BIMETAL BUSHINGS |
3530 |
39×35×30 |
|
BIMETAL BUSHINGS |
1810 |
20×18×10 |
BIMETAL BUSHINGS |
3540 |
39×35×40 |
|
BIMETAL BUSHINGS |
1815 |
20×18×15 |
BIMETAL BUSHINGS |
3550 |
39×35×50 |
|
BIMETAL BUSHINGS |
1820 |
20×18×20 |
BIMETAL BUSHINGS |
3820 |
42×38×20 |
|
BIMETAL BUSHINGS |
1825 |
20×18×25 |
BIMETAL BUSHINGS |
3825 |
42×38×25 |
|
BIMETAL BUSHINGS |
2010 |
23×20×10 |
BIMETAL BUSHINGS |
3830 |
42×38×30 |
Typical applications
The BIMETAL BUSHINGS is mainly used for medium load and medium speed oil lubrication or grease lubrication.Its typical application mainly has the engine connecting rod, the pin shaft, the engineering machinery chassis support heavy wheel, the support chain wheel, the guiding wheel, the hydraulic oil cylinder guide sleeve, the oil earring, the logistics machinery, the agricultural machinery and so on.Because the sintered copper alloy layer contains lead, the use of this product under certain conditions will be limited according to relevant laws and regulations.
