E90 TIN Bronze Bushing Sleeve High Load Capacity

Top Bearings is a professional China E90 TIN Bronze Bushing Sleeve High Load Capacity manufacturers and suppliers, if you are looking for the best E90 TIN Bronze Bushing Sleeve High Load Capacity with low price, consult us now!

Product Parameter

Material:	Tin-Bronze CuSn8P	Types:	Wrapped Bushes, Flanged Bearing, Thrust Washer
Application:	Agricultural, Building And Engineering Machines, Etc.	Supply Ability:	Bronze Sleeve Bushings, China, Manufacturers, Suppliers, Factory, Wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Feature:	High Temperature Resistance,Wear Resistance,corrosion Resistance	Hardness:	HB 90~150
High Light:	E90 TIN Bronze Bushing Sleeve, Bronze Bushing Sleeve High Load, Bronze Bushing Sleeve Self Lubricating

E90 TIN Bronze Bushing Sleeve High Load Capacity Self Lubricating Bearings

E90 Bronze Bushing Size,Bearing Company, Bushing Company, constantly study new materials and new products development, Flanged Sleeve Bearings - Bushings & Bearings - Metric & Inch Size

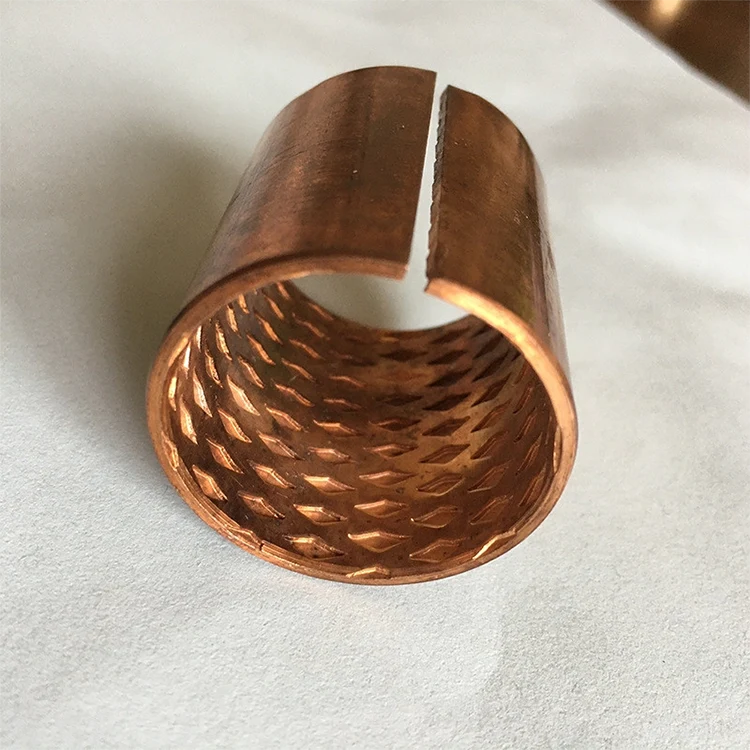

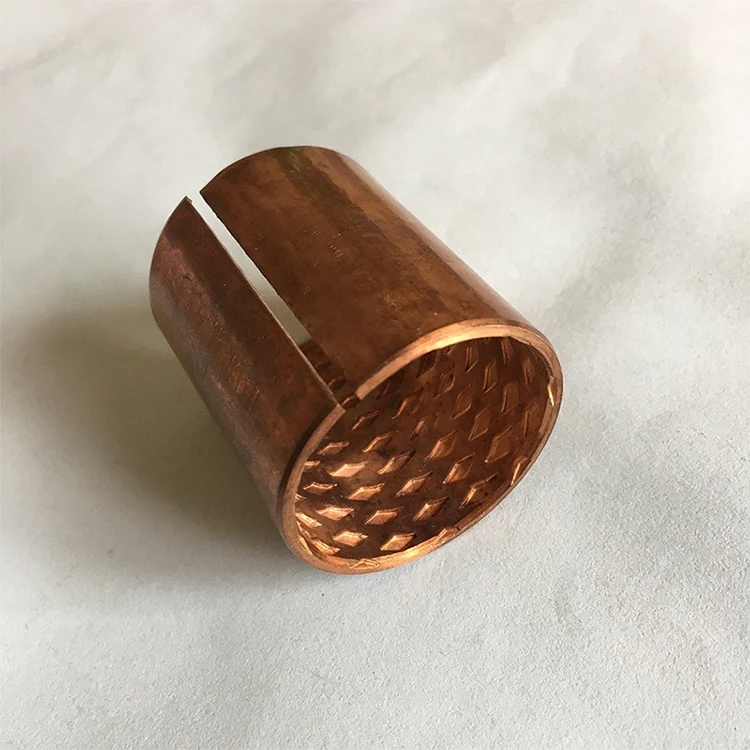

The bushing is an economical bearing with high bearing capacity and good wear resistance, which is rolled with CuSn6.5P0.1 or CuSn8P0.3 bronze as the base material. The working surface of the standard FB090 product is covered with regular diamond-shaped oil pockets, which play the role of oil storage, and can easily form an oil film during the initial movement to reduce the initial friction coefficient.

Main parameters TECHNICAL DATE
Maximum load
static load
120N/mm2
hardness
HB 90-120
dynamic load
40N/mm2
Be
Elongation
40%
Maximum line speed
2m/s
Be
Operating temperature
-100℃~＋200℃
Max PV
2.8N/mm2.m/s
Be
friction coefficient
0.08~0.25
tensile strength
450N/mm2
Be
Thermal Conductivity
60W(m.K)-1
Yield Strength
Be
250N/mm2
Be
Linear expansion coefficient

15x10-6K

Application Features APPLICATION CHARACTER

2. Less oil lubrication, suitable for occasions where oil or water lubrication is difficult;
3. Good wear resistance, small friction coefficient and long service life;
4. Can be used in the range of -100℃-200℃;
5. Good running-in performance, low noise and no pollution;
6. Thin-walled structure, light weight, can reduce the mechanical volume;
7. The matrix has high density, no air shrinkage cavity and large bearing capacity;
At present, it has been widely used in the sliding parts of various machinery, such as: automatic machinery equipment (telescopic, swing, sliding, bending, swinging, rotating parts) hydraulic cylinder guide bushes, textile machinery, plastic molding machines, die-casting machines, rubber machinery, hydraulic Trucks, automobiles, motorcycles, ports, water conservancy, engineering, agricultural machinery

bronze bushing standard size table

d	D	f1	f2	L 0 -0.40
				10	15	20	25	30	35	40	50	60	70	80	90	100
10	12	0.5	0.3	1010	1015	1020
12	14			1210	1215	1220
14	16			1410	1415	1420	1425
15	17			1510	1515	1520	1525
16	18			1610	1615	1620	1625
18	20			1810	1815	1820	1825
20	23	0.8	0.4	2010	2015	2020	2025
22	25			2210	2215	2220	2225	2230
24	27				2415	2420	2425	2430
25	28				2515	2520	2525	2530
28	31				2815	2820	2825	2830
30	34	1.0	0.6		3015	3020	3025	3030	3035	3040
32	36				3215	3220	3225	3230	3235	3240
35	39				3515	3520	3025	3530	3535	3540
40	44					4020	4025	4030	4035	4040	4050
45	50	1.2	0.8			4520	4525	4530	4535	4540	4550
50	55					5020	5025	5030	5035	5040	5050	5060
55	60					5520	5525	5530	5535	5540	5550	5560
60	65						6025	6030	6035	6040	6050	6060	6070
65	70							6530	6535	6540	6550	6560	6570
70	75							7030	7035	7040	7050	7060	7070	7080
75	80							7530	7535	7540	7550	7560	7570	7580
80	85	1.4	0.8					8030	8035	8040	8050	8060	8070	8080
85	90							8530	8535	8540	8550	8560	8570	8580	8590
90	95							9030	9035	9040	9050	9060	9070	9080	9090
95	100									9540	9550	9560	9570	9580	9590	95100
100	105										10050	10060	10070	10080	10090	100100
105	110										10550	10560	10570	10580	10590	105100
110	115										11050	11060	11070	11080	11090	110100

d	D	f1	f2	L 0 -0.40
				25	30	35	40	50	60	70	80	90	100
115	120	1.4	0.8					11550	11560	11570	11580	11590	115110
120	125								12060	12070	12080	12090	120110
125	130								12560	12570	12580	12590	125110
130	135								13060	13070	13080	13090	130110
135	140								13560	13570	13580	13590	135110
140	145								14060	14070	14080	14090	140110
145	150								14560	14570	14580	14590	145110
150	155								15060	15070	15080	15090	150110
155	160								15560	15570	15580	15590	155110
160	165								16060	16070	16080	16090	160110
165	170								16560	16570	16580	16590	165110
170	175								17060	17070	17080	17090	170110
175	180								17560	17570	17580	17590	175110
180	185								18060	18070	18080	18090	180110
185	190								18560	18570	18580	18590	185110
190	195								19060	19070	19080	19090	190110
195	200								19560	19570	19580	19590	195110
200	205								20060	20070	20080	20090	200110
205	210								20560	20570	20580	20590	205110
215	220								21560	21570	21580	21590	215110
225	230								22560	22570	22580	22590	225110
230	235								23060	23070	23080	23090	230110
240	245								24060	24070	24080	24090	240110
250	255								25060	25070	25080	25090	250110
260	265								26060	26070	26080	26090	260110
270	275								27060	27070	27080	27090	270110
280	285								28060	28070	28080	28090	280110
290	295								29060	29070	29080	29090	290110
300	305								30060	30070	30080	30090	300110

Special Offer: Discounts of 15%, 30%, 50% and 55% are available when you order .Bronze Bearings 180100 made of CuSn8 ,Plain CuSn8 Bronze bushing,Alternative part numbers:

E90F E92F E90 E92 BUSHINGS,BK-080, BRM 80, COB-092, FB 092, WB 702 BRONZE BUSHINGS

Bronze Bushing 180-185-100mm ,Get your bronze bushing bearings price.Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery.Flange Bronze Bushing also can manufacture

1. Self lubricating,

1. High speed and high load applications,

1. Can operate at a wide range of temperature ranges,

1. Corrosion resistance,

1. Product range ,flange size available ,Easily customized



Bronze Bushing Mateiral

CuSn8P (DIN 17662)
DIN 1494 / ISO 3547
The bronze bearings,bronze gleitlager are produced from phosphor bronze alloy rolled strip which is hard and has an excellent finish.
The material composition is as follows:

Part No	Material	Cu	Sn	P	Pb	Zn
E92 & E92F	CuSn8	91.3%	8.5%	0.2%	/	/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

Bronze Bearing Dimension
Metric / Imperial: Metric (mm)
Internal Diameter: 180mm
Outside Diameter: 185mm
Length: 100mm

Bronze Bearing Tolerance
Length tolerance: Min: 99.75mm Max: 100.25mm
Recommended shaft tolerance: Min: 179.917mm Max: 179.957mm (f7)
Recommended housing tolerance: Min: 185mm Max: 185.046mm (H7)
ID when fitted: Min: 180mm Max: 180.155mm

FB092 bronze bushing with holes
Product description:
FB092 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.
Sliding Bearing China | High Quality, Factory Price‎


Materials

Bronze Wrapped Washers
Bronze Wrapped Bearing Strip
Bronze Wrapped Plain Bearings

Bronze Wrapped Flanged Bearings

Feature:

2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.
