Product Description

Top Bearings is China manufacturers & suppliers who mainly produces FB090 FB092 Wrapped Bronze Sliding Bushing with many years of experience. Hope to build business relationship with you.

Product Parameter

Material:	CuSn8 Bronze Sliding Bearing	Types:	Wrapped Bushes, Flanged Bearing, Thrust Washer
Application:	Agricultural, Building And Engineering Machines, Etc.	Supply Ability:	Bronze Sleeve Bushings, China, Manufacturers, Suppliers, Factory, Wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Feature:	Lubricating Holes Or Diamond Hole
High Light:	Customized Dimension Wrapped Bronze Bearing, FB090 Bronze Sliding Bushing, Wrapped Bronze Sliding Bushing

FB090 FB092 Bronze Bushing Sliding Bearing Customized Dimension

FB090 & FB092 Bronze Bushing Sliding Bearing Straight Type & Flange Type
Bronze Bearings are with lubrication holes
Sliding Bearing FB090 & FB092 Bronze Bushing E90/E92 Sleeve Bushing
With CusN6.5P0.1 or CusN8P0.3 bronze as the matrix, the bronze hole layout bearing is designed with uniform and orderly oil filling holes. Lubricating oil is injected after assembly. The bearing has the advantages of large oil storage, convenient installation, and small design machine, and can replace the copper sleeve to use, greatly reducing the cost
2. Less oil lubrication, suitable for occasions where it is difficult to add oil or water lubrication;
3. Good wear resistance, low friction coefficient, and long service life;
4. It can be used within the range of -100℃ to 200℃;
5. Good coupling performance, low noise, no pollution;
6. Thin-walled structure, lightweight, can reduce the mechanical volume;
7. The matrix has high density, gas-free shrinkage cavity, and large bearing capacity;
Currently has been widely applied to various mechanical sliding parts, such as automation machinery and equipment (scale, swing, slide, bending, cyclotron, turning parts) of the hydraulic cylinder guide bush, textile machinery, plastic molding machine, die-casting machine, rubber machinery, hydraulic truck, automobile, motorcycle industry, ports, water conservancy, construction, agricultural machinery, etc.
Long service intervals under severe operating circumstances.

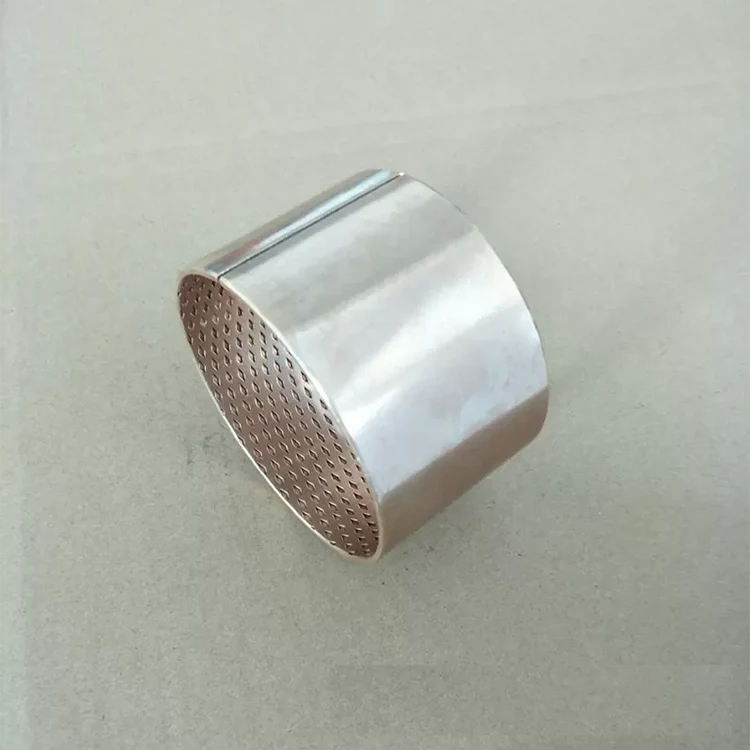

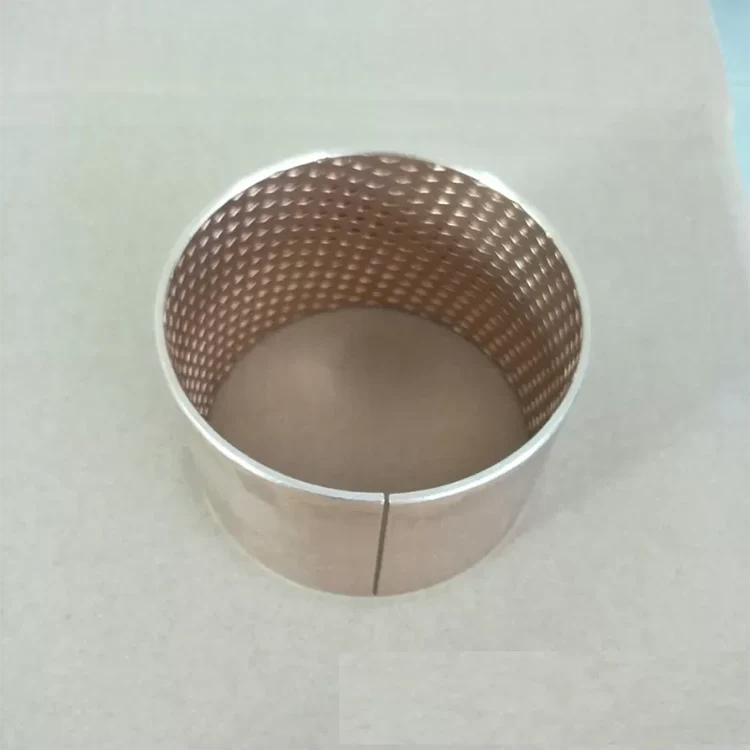

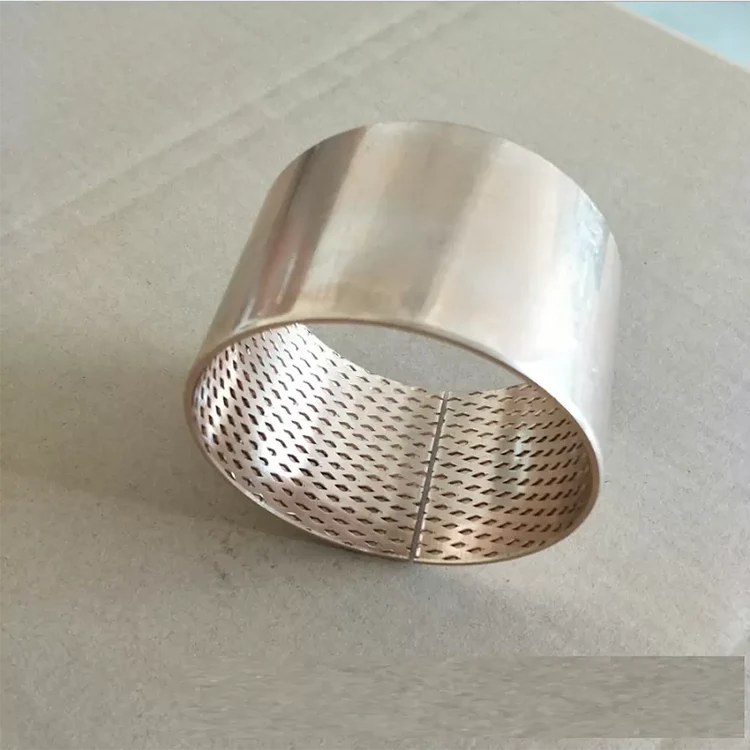

Wrapped bronze bearings are ideal for applications where there are high levels of contamination. Their running surface is provided with diamond-shaped lubrication pockets or a hole pattern. The lubrication pockets must be filled with grease when the bearing is installed. The wrapped bronze bearings are produced according to the ISO 3547.
Materials
Lubrication

Advantages

Long service intervals

Not affected by impurities

Suitable for corrosive environments

Suitable for impact loads and vibrations at low speeds

Good heat dissipation

Applications

Agricultural vehicles

Lifting gear

Offshore

Excavators

Type	Thickness	Oil Depth
FB090 glidlager	1mm	0.3～0.4mm
	1.5mm	0.4～0.5mm
	2mm	0.5～0.6mm
	2.5mm	0.6～0.7mm
FB09G glidlager FB08G glidlager	0.65mm	0.15～0.3mm
	1mm	0.3～0.4mm
	1.5mm	0.4～0.5mm
	2mm	0.4～0.5mm
	2.5mm	0.4～0.5mm

ITEM	ID	OD	L
FB090 bronze bushing 303430	30	34	30

FB090 bronze bushing 404440	40	44	40

FB090 bronze bushing 505540	50	55	40

FB090 bronze bushing 505550	50	55	50

FB090 bronze bushing 505560	50	55	60

FB090 bronze bushing 606540	60	65	40

FB090 bronze bushing 606550	60	65	50

FB090 bronze bushing 606560	60	65	60

FB090 bronze bushing 707550	70	75	50

FB090 bronze bushing 808560	80	85	60

FB090 bronze bushing 909560	90	95	60

FB092 bronze bearings 404440	40	44	40

FB092 bronze bearings 404450	40	44	50

FB092 bronze bearings 505550	50	55	50

FB092 bronze bearings 505560	50	55	60

FB092 bronze bearings 606550	60	65	50

FB092 bronze bearings 606560	60	65	60

FB092 bronze bearings 758060	75	80	60

The basic features

The inner hole of the product is full of and oil pits, which can store a large amount of oil during use and extend the refueling interval.Wrapped bronze bearings are made entirely from phosphor bronze CuSn8. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. Wrapped bronze bearings are produced from strips that are subsequently wrapped and calibrated.

Wrapped bronze bearings must be lubricated with grease or oil on installation. A good quality lubricant is essential as it will reduce friction and wear by forming a film between the plain bearing and the shaft. For heavily contaminated applications, we recommend sealing off the bearing. This will protect both the bearing and the lubricant.

The main advantages of wrapped bronze bearings include:

Wrapped bronze bearings are especially suited to severe operating conditions where frequent maintenance is not possible. Common applications are:
