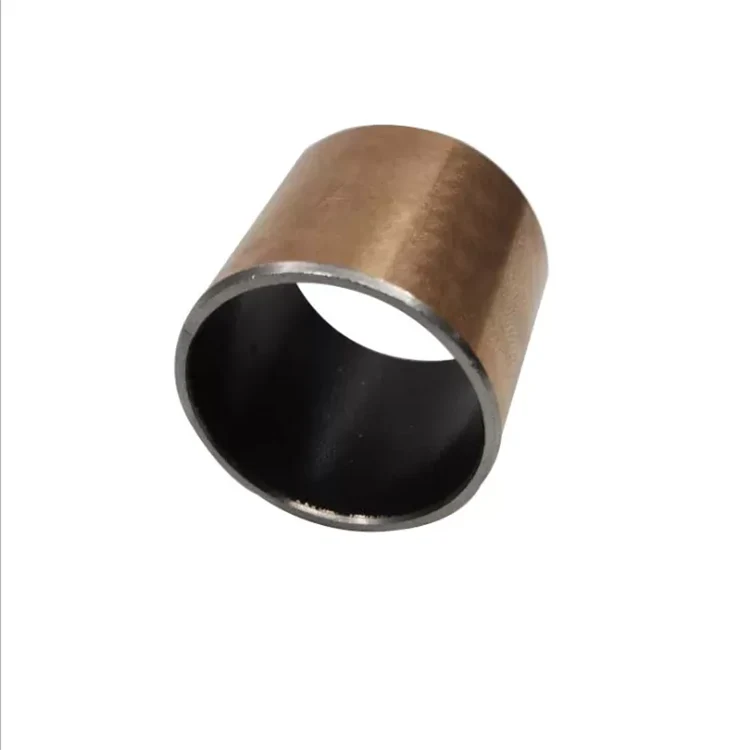

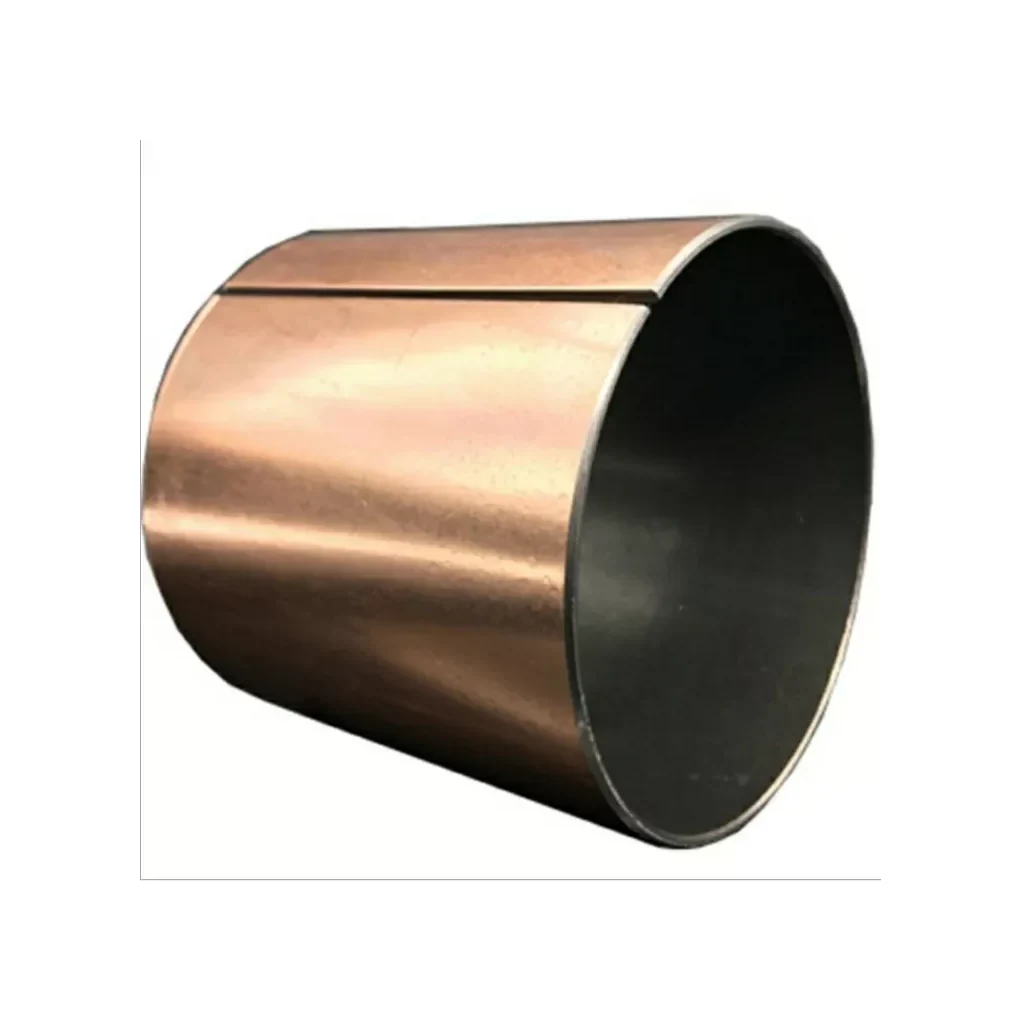

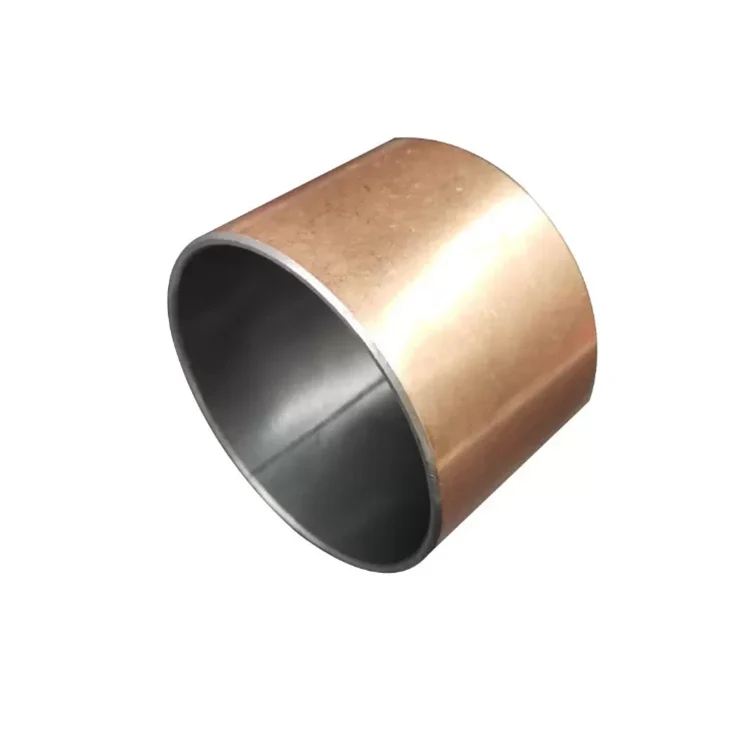

                                    Customized 0.03mm PTFE Self Lubricating Bearings
                                    • Customized 0.03mm PTFE Self Lubricating BearingsCustomized 0.03mm PTFE Self Lubricating Bearings
                                    • Customized 0.03mm PTFE Self Lubricating BearingsCustomized 0.03mm PTFE Self Lubricating Bearings
                                    • Customized 0.03mm PTFE Self Lubricating BearingsCustomized 0.03mm PTFE Self Lubricating Bearings

                                    Customized 0.03mm PTFE Self Lubricating Bearings

                                    As the professional manufacturers, Top Bearings would like to provide you Customized 0.03mm PTFE Self Lubricating Bearings. And we will offer you the best after-sale service and timely delivery.

                                    Send Inquiry

                                    Product Description

                                    As the professional manufacturers, Top Bearings would like to provide you Customized 0.03mm PTFE Self Lubricating Bearings. And we will offer you the best after-sale service and timely delivery.


                                    Product Parameter

                                    Material:

                                    Carbon Steel + Bronze+ Ptfe

                                    Supply Ability:

                                    Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

                                    Characteristic:

                                    Low-maintenance And Maintenance-free Plain Bearings

                                    Production Feature:

                                    Bushes, Collar Bushes, Washers, Strips Or Special Designs

                                    Plating:

                                    Tin Or Copper Plated

                                    Size:

                                    Customized Size,Customized Request, All Standard, As Per Customer's Request

                                    Lubricating:

                                    Oilless

                                    Packaging Details:

                                    Export Standard Packing

                                    High Light:

                                    Tin Plating Self Lubricating Bearings, 0.03mm PTFE Self Lubricating Bearings


                                    Customized Bushes & Sliding Bearings Components For The Most Extreme High Temperature Pressure & Corrosive
                                    PTFE sliding bushings are suitable for dry running, low friction, less wear, good sliding properties, forming a transmission layer that can protect the mating metal surface, suitable for rotating and oscillating motion. PTFE sliding bushings has very high chemical resistance, low water absorption and swelling. It also copes well with lubrication.


                                    Wrapped composite bearing with PTFE sliding layer - Maintenance-free

                                    • Dry slide bearing requires no lubrication
                                    • High static and dynamic load capacity



                                    Steel + Porous Bronze Sinter + PTFE + Pb

                                    • 0.01 ~ 0.03mm PTFE fiber blend, lead-free, provides an excellent initial transfer film that effectively covers the mating surface of the sleeve assembly to form a solid oxide-type lubricant film.
                                    • Sintered bronze powder 0.20-0.35mm, provides maximum thermal conductivity away from the sleeve surface, also serves as a reservoir for PTFE mixture.
                                    • The steel carrier ensures high load-bearing capacity and excellent heat dissipation.
                                    • 0.002 mm tin-copper coating provides good corrosion resistance.

                                    Customized 0.03mm PTFE Self Lubricating Bearings Tin Plating 0


                                    Sliding composite du bushings PTFE material (Metric)

                                    Nominal Diameter Width Wall Shaft Housing Installed Bushing ID Clearance
                                    Thickness Diameter ID
                                    Part Number ID OD min / max min / max min / max min / max min / max min / max
                                    du bushing 0203 2 3.5 2.75 0.725 1.994 3.5 2.01 0.01
                                    3.25 0.745 2 3.508 2.058 0.064
                                    du bushing 0205 4.75
                                    5.25
                                    du bushing 0303 3 4.5 2.75 0.73 2.994 4.5 3 0
                                    3.25 0.75 3 4.508 3.048 0.054
                                    du bushing 0305 4.75
                                    5.25
                                    du bushing 0306 5.75
                                    6.25
                                    du bushing 0403 4 5.5 2.75 0.73 3.992 5.5 4 0
                                    3.25 0.75 4 5.508 4.048 0.056
                                    du bushing 0404 3.75
                                    4.25
                                    du bushing 0406 5.75
                                    6.25
                                    du bushing 0410 9.75
                                    10.25
                                    du bushing 0505 5 7 4.75 0.98 4.978 7 4.99 0
                                    5.25 1.005 4.99 7.015 5.055 0.077
                                    du bushing 0508 7.75
                                    8.25
                                    du bushing 0510 9.75
                                    10.25
                                    du bushing 0604 6 8 3.75 0.98 5.978 8 5.99 0
                                    4.25 1.005 5.99 8.015 6.055 0.077
                                    du bushing 0606 5.75
                                    6.25
                                    du bushing 0608 7.75
                                    8.25
                                    du bushing 0610 9.75
                                    10.25
                                    du bushing 0710 7 9 9.75 0.98 6.972 9 6.99 0.003
                                    10.25 1.005 6.987 9.015 7.055 0.083
                                    du bushing 0806 8 10 5.75 0.98 7.972 10 7.99 0.003
                                    6.25 1.005 7.987 10.015 8.055 0.083
                                    du bushing 0808 7.75
                                    8.25
                                    du bushing 0810 9.75
                                    10.25
                                    du bushing 0812 11.75
                                    12.25
                                    du bushing 1008 10 12 7.75 0.98 9.972 12 9.99 0.003
                                    8.25 1.005 9.987 12.018 10.058 0.086
                                    du bushing 1010 9.75
                                    10.25
                                    du bushing 1012 11.75
                                    12.25
                                    du bushing 1015 14.75
                                    15.25
                                    du bushing 1020 19.75
                                    20.25
                                    du bushing 1208 12 14 7.75 0.98 11.984 14.018 12.058 0.006
                                    8.25 1.005 11.966 14 11.99 0.092
                                    du bushing 1210 9.75
                                    10.25
                                    du bushing 1212 11.75
                                    12.25
                                    du bushing 1215 14.75
                                    15.25
                                    du bushing 1220 19.75
                                    20.25
                                    du bushing 1225 24.75
                                    25.25
                                    du bushing 1310 13 15 9.75 0.98 12.966 15 12.99 0.006
                                    10.25 1.005 12.984 15.018 13.058 0.092
                                    du bushing 1320 19.75
                                    20.25
                                    du bushing 1405 14 16 4.75 0.98 13.966 16 13.99 0.006
                                    5.25 1.005 13.984 16.018 14.058 0.092
                                    du bushing 1410 9.75
                                    10.25
                                    du bushing 1412 11.75
                                    12.25
                                    du bushing 1415 14.75
                                    15.25
                                    du bushing 1420 19.75
                                    20.25
                                    du bushing 1425 24.75
                                    25.25
                                    du bushing 1510 15 17 9.75 0.98 14.966 17 14.99 0.006
                                    10.25 1.005 14.984 17.018 15.058 0.092
                                    du bushing 1512 11.75
                                    12.25
                                    du bushing 1515 14.75
                                    15.25
                                    du bushing 1520 19.75
                                    20.25
                                    du bushing 1525 24.75
                                    25.25
                                    du bushing 1610 16 18 9.75 0.98 15.966 18 15.99 0.006
                                    10.25 1.005 15.984 18.018 16.058 0.092
                                    du bushing 1612 11.75
                                    12.25
                                    du bushing 1615 14.75
                                    15.25
                                    du bushing 1620 19.75
                                    20.25
                                    du bushing 1625 24.75
                                    25.25
                                    du bushing 1720 17 19 19.75 0.98 16.966 19 16.99 0.006
                                    20.25 1.005 16.984 19.021 17.061 0.095
                                    du bushing 1810 18 20 9.75 0.98 17.966 20 17.99 0.006
                                    10.25 1.005 17.984 20.021 18.061 0.095
                                    du bushing 1815 14.75
                                    15.25
                                    du bushing 1820 19.75
                                    20.25
                                    du bushing 1825 24.75
                                    25.25
                                    du bushing 2010 20 23 9.75 1.475 19.959 23 19.99 0.01
                                    10.25 1.505 19.98 23.021 20.071 0.112
                                    du bushing 2015 14.75
                                    15.25
                                    du bushing 2020 19.75
                                    20.25
                                    du bushing 2025 24.75
                                    25.25
                                    du bushing 2030 29.75
                                    30.25
                                    du bushing 2215 22 25 14.75 1.475 21.959 25 21.99 0.01
                                    15.25 1.505 21.98 25.021 22.071 0.112
                                    du bushing 2220 19.75
                                    20.25
                                    du bushing 2225 24.75
                                    25.25
                                    du bushing 2230 29.75
                                    30.25
                                    du bushing 2415 24 27 14.75 1.475 23.959 27 23.99 0.01
                                    15.25 1.505 23.98 27.021 24.071 0.112
